DIN 608 Online Drawing Generator & Dimensions

Countersunk Low Sq Neck

Use this DIN 608 online drawing generator to review the Countersunk Low Sq Neck geometry and configure diameter, pitch, length and head dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 608, DIN608, DIN 608 drawing and DIN 608 dimensions refer to this page.

Standards
  • DIN 608
Back to Countersunk head boltsCompare DIN 608 equivalents and replacement →

Create Your DIN 608 Drawing Online

Use this DIN 608 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 608 or DIN608, this online drawing tool covers the same Countersunk Low Sq Neck standard reference.

Configure Your DIN 608 Countersunk Low Sq Neck Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 608

Countersunk Low Sq Neck

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 608

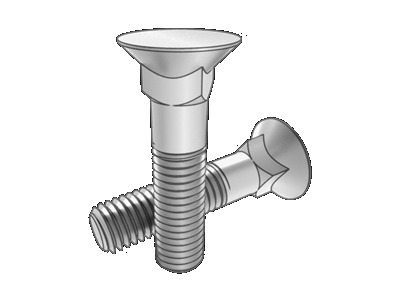

DIN 608 Countersunk Low Sq Neck
Product code
Product specification
M10x25
Product standard
DIN 608
Material / grade
Steel 45
Unit
mm
Mechanical properties
4.6 3.6
DIN 608 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M10
P
1.5
L
23.95~26.05
dk
18.35~19.65
k
7.55~8.45
s
9.42~10.58

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
General technical requirements
DIN 267-1
Thread
Tolerance
8g
Standard
DIN 13-13
Mechanical properties
Property class
4.6 3.6
Standard
DIN ISO 898-1
Tolerance
Product grade
C
Standard
DIN ISO 4759-1
Surface roughness
DIN 267-2
Surface Treatment
electroplatingDIN 267-9; HDGDIN 267-10
Surface defects
DIN 267-19
Inspection & packaging
DIN 267-5
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-608Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPdk/maxdk/minds/maxds/mink/maxk/mins/maxs/min
M101.519.6518.35109.428.457.5510.589.42
M121.7524.65 23.35 12 11.3 11.05 9.95 12.7 11.3
Document No.: EF-DIN-608Revision: v1Issue date: 2026-09-24Page: 2 / 2
