Material and performance series
304 / A2-70 · 316 / 316L / A4-70 / A4-80 · Duplex 2205 · Super Duplex 2507
Corrosion-resistant stainless & duplex fastening for marine, chemical, food and outdoor chloride exposure
DIN 931 / ISO 4014 / ASTM F593SS304 / SS316 / A2-70 / A4-80
A2-70 / A4-80 partial-thread stainless hex head bolts per DIN 931 / ISO 4014 for structural and coastal assemblies.
DIN 933 / ISO 4017 / ASTM F593SS304 / SS316 / A2-70 / A4-80
A2-70 / A4-80 full-thread stainless hex head bolts per DIN 933 / ISO 4017 for solar and equipment assemblies.
DIN 939 / DIN 835 / ASTM A193 / ASME B16.5SS316 / 316Ti / B8M Class 2
ASTM A193 B8M stainless stud bolts in A4-80 / 316Ti for offshore and splash-zone flange joints.
DIN 186 / DIN 188 ref / OEMSS304 / SS316 / A2-70 / A4-80
A2 / A4 stainless T-bolts for T-slot rails, channel profiles and adjustable mounting assemblies.
DIN 6921 / ISO 4162 / OEMSS304 / SS316 / A2-70 / A4-80
A2 / A4 stainless hex flange bolts per DIN 6921 / ISO 4162 for wide-bearing structural assemblies.
DIN 931 / DIN 933 / ISO 4014 / ISO 4017 / ASTM F593Duplex 2205 / Super Duplex 2507 / UNS S32205 / S32750
Duplex 2205 / 2507 hex head bolts for offshore and high-chloride renewable environments.
DIN 976 / ASTM F593 / ASME B18.31.3SS304 / SS316 / A2-70 / A4-80
DIN 976 stainless threaded rods in SS304 / SS316 for corrosion-resistant bolting and anchoring.
DIN 912 / ISO 4762 / ASTM A574SS304 / SS316 / A2-70 / A4-80
A2 / A4 stainless socket head cap screws per ISO 4762 for precision renewable equipment assemblies.
DIN 7971 / ISO 1481SS304 / SS316 / A2-70 / A4-70
DIN 7971 / ISO 1481 stainless slotted pan head self tapping screws in SS304 / SS316.

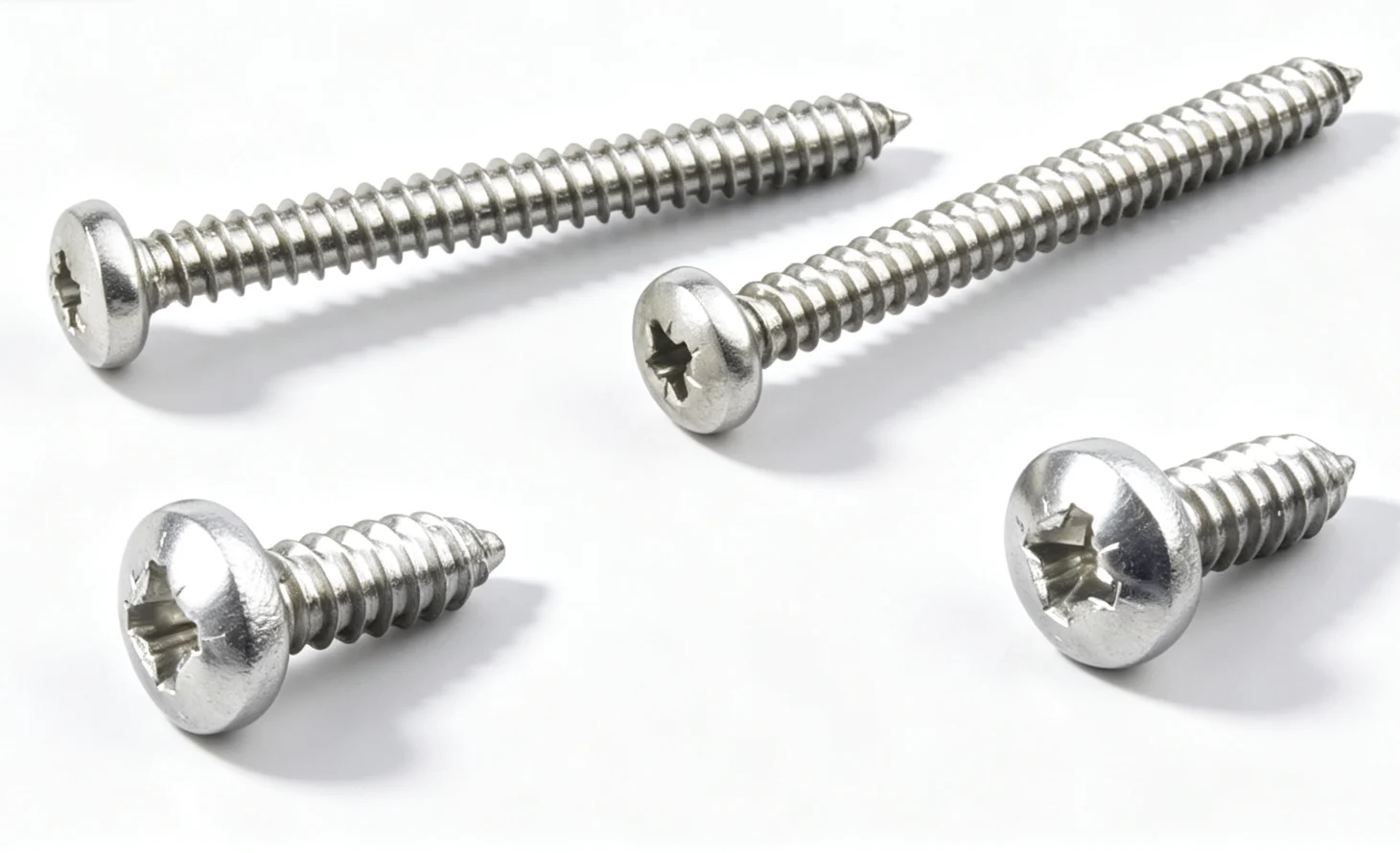

DIN 7981 / ISO 7049SS304 / SS316 / A2-70 / A4-70
DIN 7981 / ISO 7049 stainless cross recessed pan head self tapping screws in SS304 / SS316.
DIN 7982 / ISO 7050SS304 / SS316 / A2-70 / A4-70
DIN 7982 / ISO 7050 stainless cross recessed countersunk head self tapping screws in SS304 / SS316.
ISO 10642 / DIN 7991SS316 / A4-80
A4-80 316 stainless countersunk socket screws per ISO 10642 / DIN 7991 for hygienic and flush equipment assemblies.
DIN 934 / ISO 4032 / ASME B18.2.2SS304 / SS316 / A2-70 / A4-80
A2 / A4 stainless hex nuts per ISO 4032 matched to renewable stainless bolt assemblies.
DIN 985 / DIN 982 / ISO 10511 / ISO 10512SS304 / SS316 with Nylon Insert / A2-70 / A4-80
A2 / A4 stainless nylon insert lock nuts per DIN 985 / DIN 982.
ASTM A194 Grade 8 / 8M / ASME B18.2.2SS316 / 8 / 8M
ASTM A194 Grade 8 / 8M stainless heavy hex nuts for A193 B8 / B8M stud bolting.
ISO 7089 / DIN 125SS304 / SS316 / —
A2 / A4 stainless flat washers per ISO 7089 for renewable stainless bolt assemblies.
DIN 6797SS304 / SS316 / —
DIN 6797 stainless toothed lock washers in SS304 / SS316.
DIN 127 / ISO 7980SS304 / SS316 / —
DIN 127 / ISO 7980 stainless spring washers in SS304 / SS316.
DIN 3017 / SAE J1508SS304 / SS316 / —
Stainless worm drive hose clamps per DIN 3017 / SAE J1508 in SUS304 / SUS316.
ISO 15981 / DIN 7337A2 Stainless Steel Body / A2 Stainless Steel Mandrel / A2/A2 (A4/A4 Optional)
ISO 15981 / DIN 7337 A2/A2 stainless blind rivets for corrosion-resistant outdoor, marine and hygienic assemblies.
ETA / EAD 330232-00-0601 / ICC-ES AC193 / ACI 355.2 / OEMSS304 / SS316 / A2-70 / A4-80
SS304 / SS316 stainless wedge anchors for concrete anchorage in corrosive environments.
OEM drawing / project facade specification / DIN-ISO fastener referencesSS304 / SS316 / A2 / A4
SS304 / SS316 stainless scissor anchors for hollow substrate fixing, facade cavities, panel supports and corrosion-resistant light to medium duty anchorage.
ETA / EAD 330232-00-0601 / ICC-ES AC193 / ACI 355.2 / OEM project approvalSS304 / SS316 / SS316L / A2-70 / A4-70 / A4-80
A2/A4 stainless undercut anchors for low-expansion, high-reliability concrete anchorage in cracked or high-corrosion service.
DIN 529 / OEM DrawingSS304 / SS316 / A2-70 / A4-80
DIN 529 stainless L anchor bolts in SS304 / SS316 for exposed foundation anchorage.
ISO 1234 / DIN 94SS304 / —
ISO 1234/DIN 94 split pins for clevis pin and mechanical locking assemblies.
