DIN 792 Online Drawing Generator & Dimensions

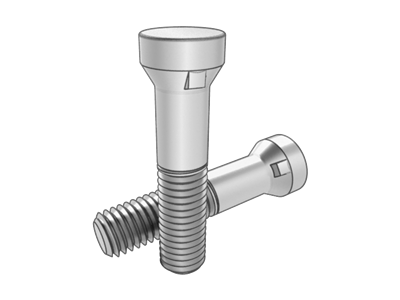

Cylindrical countersunk head nib bolts

Use this DIN 792 online drawing generator to review the Cylindrical countersunk head nib bolts geometry and configure diameter, pitch, length and head dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 792, DIN792, DIN 792 drawing and DIN 792 dimensions refer to this page.

Standards
  • DIN 792
Back to Countersunk head boltsCompare DIN 792 equivalents and replacement →

Create Your DIN 792 Drawing Online

Use this DIN 792 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 792 or DIN792, this online drawing tool covers the same Cylindrical countersunk head nib bolts standard reference.

Configure Your DIN 792 Cylindrical countersunk head nib bolts Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 792

Cylindrical countersunk head nib bolts

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 792
DIN 792 Cylindrical countersunk head nib bolts
Product code
Product specification
M24x80
Product standard
DIN 792
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 792 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M24
P
3
L
78.5~81.5
b
54
k
25
dk
38
k1
12.1
s
6.6

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-792Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPkdkk1s
M242|3253812.16.6
M302|3.5304815.66.6
M332|3.5305216.47.6
M363|4355818.28.6
M393|4406219.98.6
M423|4.5406822.68.6
Document No.: EF-DIN-792Revision: v1Issue date: 2026-09-24Page: 2 / 2
