DIN 571 Online Drawing Generator & Dimensions

Hex Head Wood Screws

Use this DIN 571 online drawing generator to review the Hex Head Wood Screws geometry and configure diameter, pitch, length, head and drive dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 571, DIN571, DIN 571 drawing and DIN 571 dimensions refer to this page.

Standards
  • DIN 571
Back to Hex head self-tapping screwsCompare DIN 571 equivalents and replacement →

Create Your DIN 571 Drawing Online

Use this DIN 571 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 571 or DIN571, this online drawing tool covers the same Hex Head Wood Screws standard reference.

Configure Your DIN 571 Hex Head Wood Screws Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 571

Hex Head Wood Screws

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 571

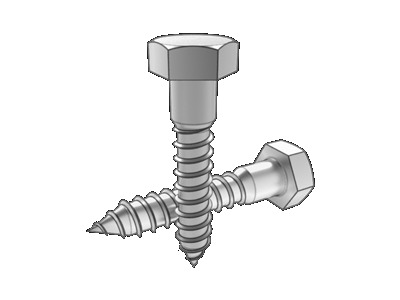

DIN 571 Hex Head Wood Screws
Product code
Product specification
4x16
Product standard
DIN 571
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 571 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
4
P
1.6
L
14.9~16
ds
3.52~4
k
2.5~3.1
s
6.64~7
e
7.5

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
General technical requirements
DIN ISO 8992
Thread
Tolerance
Standard
DIN 7998
Mechanical properties
Property class
45H
Material
St
Standard
DIN EN 10087
Tolerance
Product grade
C
Standard
DIN EN ISO 4759-1
Surface Treatment
plain; electroplatingDIN EN ISO 4042; HDGDIN EN ISO 10684
Surface defects
DIN EN 26157-1
Inspection & packaging
DIN EN ISO 3269
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-571Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPds/maxds/mink/maxk/mins/maxs/mine/min
41.643.523.12.576.647.5
5254.523.883.1387.648.63
62.565.524.383.63109.6410.89
72.876.425.384.631211.5713.07
8387.425.885.131312.5714.2
103.5109.427.456.551716.5718.72
1241211.38.457.551918.4820.88
1651615.310.459.552423.1626.17
2062019.313.912.13029.1632.95
Document No.: EF-DIN-571Revision: v1Issue date: 2026-09-24Page: 2 / 2
