Create Your DIN 7976 Drawing Online

Use this DIN 7976 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 7976 or DIN7976, this online drawing tool covers the same Hex Head Tapping standard reference.

Configure Your DIN 7976 Hex Head Tapping Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

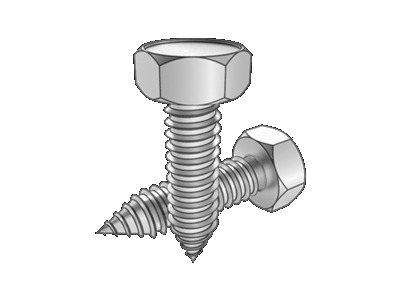

DIN 7976 Hex Head Tapping

Product code

Product specification

ST2.2x4.5

Product standard

DIN 7976

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

2.1~2.24

0.8

3.7~5.3

0.8

3.38

1.18~1.42

0.3

3.02~3.2

1.52~1.63

max = maximum; min = minimum

Material

Material type

Steel

Grade

Thread

Tolerance

Standard

Mechanical properties

Property class

45H

Standard

Tolerance

Product grade

Standard

Surface defects

Surface Treatment

Inspection & packaging

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	a/max	e/min	k/min	k/max	r/max	s/max	s/min	d/max	d/min	d1/max	d1/min
ST2.2	0.8	0.8	3.38	1.18	1.42	0.3	3.2	3.02	2.24	2.1	1.63	1.52
ST2.9	1.1	1.1	5.4	1.38	1.62	0.4	5	4.82	2.9	2.76	2.18	2.08
ST3.5	1.3	1.3	5.96	2.18	2.42	0.5	5.5	5.32	3.53	3.35	2.64	2.51
ST3.9	1.3	1.3	7.59	2.18	2.42	0.5	7	6.78	3.91	3.73	2.92	2.77
ST4.2	1.4	1.4	7.59	2.68	2.92	0.6	7	6.78	4.22	4.04	3.1	2.95
ST4.8	1.6	1.6	8.71	2.88	3.12	0.7	8	7.78	4.8	4.62	3.58	3.43
ST5.5	1.8	1.8	8.71	3.85	4.15	0.8	8	7.78	5.46	5.28	4.17	3.99
ST6.3	1.8	1.8	10.95	4.65	4.95	0.9	10	9.78	6.25	6.03	4.88	4.7
ST8	2.1	2.1	14.26	5.65	5.95	1.1	13	12.73	8	7.78	6.2	5.99
95	1.8	—	—	—	—	—	—	—	—	—	—	—

Product parameters

ST2.2x4.5

Dimension	Parameter (mm)
d
P
L
d max
d min
L max
L min
a max
e min
k max
k min
r max
s max
s min
d1 max
d1 min

Technical conditions

Material	Material type
Material	Grade
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
