Create Your DIN 6791 Drawing Online

Use this DIN 6791 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 6791 or DIN6791, this online drawing tool covers the same Semi-tubular Rivets standard reference.

Configure Your DIN 6791 Semi-tubular Rivets Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

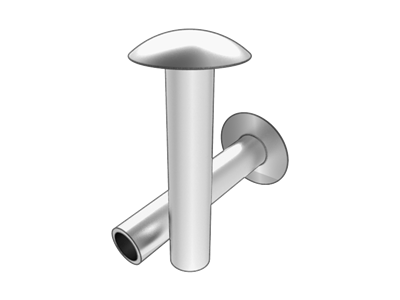

DIN 6791 Semi-tubular Rivets

Product code

Product specification

Φ1.6x3

Product standard

DIN 6791

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

1.55~1.65

2.8~3.2

2.9~3.2

1.52

0.9~1.04

0.8

0.575~0.825

0.2

1.5~2

max = maximum; min = minimum

Material

Material type

Steel

Grade

Thread

Tolerance

Standard

Mechanical properties

Property class

45H

Standard

Tolerance

Product grade

Standard

Surface defects

Surface Treatment

Inspection & packaging

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	d/max	d/min	dk/max	dk/min	d1/min	d2/max	d2/min	a/max	k/max	k/min	r/max	t/max	t/min
Φ1.6	1.65	1.55	3.2	2.9	1.52	1.04	0.9	0.8	0.825	0.575	0.2	2	1.5
Φ2	2.1	1.9	4	3.7	1.87	1.34	1.2	1	1.025	0.775	0.2	3	2.5
Φ2.5	2.6	2.4	5	4.7	2.37	1.84	1.7	1.25	1.225	0.975	0.2	3	2.5
Φ3	3.1	2.9	6	5.7	2.87	2.04	1.9	1.5	1.425	1.175	0.2	3.5	3
Φ3.5	3.6	3.4	7	6.42	3.37	2.34	2.2	1.75	1.625	1.375	0.3	4.5	4
Φ4	4.1	3.9	8	7.42	3.87	2.84	2.7	2	1.925	1.675	0.3	4.5	4
Φ5	5.15	4.85	10	9.42	4.82	3.68	3.5	2.5	2.325	2.075	0.3	5.5	5
Φ6	6.15	5.85	12	11.3	5.82	4.38	4.2	3	2.725	2.475	0.4	7	6.5
Φ8	8.15	7.85	16	15.3	6.82	6.18	6	4	3.65	3.35	0.4	8.5	8
Φ10	10.2	9.8	20	18.7	9.4	7.82	7.6	5	4.55	4.25	0.5	10.5	10

Product parameters

Φ1.6x3

Dimension	Parameter (mm)
d
L
d max
d min
L max
L min
dk max
dk min
d1 min
d2 max
d2 min
a max
k max
k min
r max
t max
t min

Technical conditions

Material	Material type
Material	Grade
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
