DIN 548 Online Drawing Generator & Dimensions

Knurled round nuts

Use this DIN 548 online drawing generator to review the Knurled round nuts geometry and configure thread diameter, pitch, width across flats and nut height. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 548, DIN548, DIN 548 drawing and DIN 548 dimensions refer to this page.

Standards
  • DIN 548
Back to Round nutsCompare DIN 548 equivalents and replacement →

Create Your DIN 548 Drawing Online

Use this DIN 548 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 548 or DIN548, this online drawing tool covers the same Knurled round nuts standard reference.

Configure Your DIN 548 Knurled round nuts Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 548

Knurled round nuts

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 548

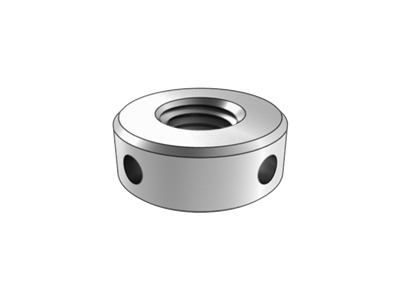

DIN 548 Knurled round nuts
Product code
Product specification
M2
Product standard
DIN 548
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 548 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M2
P
0.4
d1
1~1.14
dk
5.2~5.5
k
1.75~2
t
0.8~1

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-548Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPd1/mind1/maxdk/maxdk/mink/maxk/mint/mint/max
M20.411.145.55.221.750.81
M2.50.451.21.3476.642.21.951.31.6
M30.51.51.6487.642.52.251.31.7
M40.71.51.64109.643.53.21.82.2
M50.822.141211.574.23.92.32.7
M612.52.641413.5754.72.83.2
M81.2533.141817.576.56.143.33.8
M101.53.53.682221.4887.643.84.3
Document No.: EF-DIN-548Revision: v1Issue date: 2026-09-24Page: 2 / 2
