DIN 935 Online Drawing Generator & Dimensions

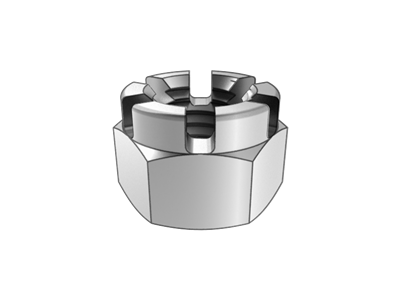

Hex Slotted Nuts

Use this DIN 935 online drawing generator to review the Hex Slotted Nuts geometry and configure thread diameter, pitch, width across flats and nut height. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 935, DIN935, DIN 935 drawing and DIN 935 dimensions refer to this page.

Standards
  • DIN 935
Back to Slotted hex nutsCompare DIN 935 equivalents and replacement →

Create Your DIN 935 Drawing Online

Use this DIN 935 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 935 or DIN935, this online drawing tool covers the same Hex Slotted Nuts standard reference.

Configure Your DIN 935 Hex Slotted Nuts Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 935

Hex Slotted Nuts

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 935
DIN 935 Hex Slotted Nuts
Product code
Product specification
M12
Product standard
DIN 935
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 935 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M12
P
1.75
d1
15.57~16
e
20.03
k
14.57~15
n
2.8~3.8
s
17.73~18
w
9.64~10

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-935Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPd1/maxd1/mine/mink/maxk/minn/minn/maxs/maxs/minw/minw/max
M121.25|1.5|1.751615.5720.031514.572.83.81817.739.6410
M141.5|21817.5723.351615.573.53.82120.6710.5711
M161.5|22221.4826.751918.484.54.82423.6712.5713
Document No.: EF-DIN-935Revision: v1Issue date: 2026-09-24Page: 2 / 2
