DIN 937 Online Drawing Generator & Dimensions

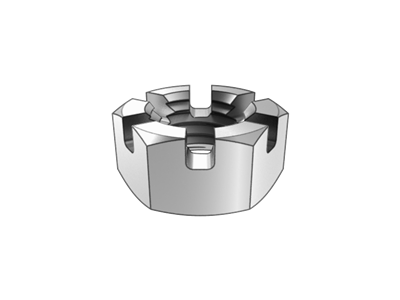

Hex Slotted Thin Nuts

Use this DIN 937 online drawing generator to review the Hex Slotted Thin Nuts geometry and configure thread diameter, pitch, width across flats and nut height. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 937, DIN937, DIN 937 drawing and DIN 937 dimensions refer to this page.

Standards
  • DIN 937
Back to Slotted hex nutsCompare DIN 937 equivalents and replacement →

Create Your DIN 937 Drawing Online

Use this DIN 937 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 937 or DIN937, this online drawing tool covers the same Hex Slotted Thin Nuts standard reference.

Configure Your DIN 937 Hex Slotted Thin Nuts Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 937

Hex Slotted Thin Nuts

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 937
DIN 937 Hex Slotted Thin Nuts
Product code
Product specification
M6
Product standard
DIN 937
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 937 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M6
P
1
e
11.05
k
5.7~6
n
2~2.25
s
9.78~10
w
3.2~3.5

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-937Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPe/mink/maxk/minn/minn/maxs/maxs/minw/minw/max
M6111.0565.722.25109.783.23.5
M7112.1276.6422.251110.733.74
M81|1.2514.3887.642.52.751312.734.24.5
M101|1.25|1.518.998.642.83.051716.734.75
Document No.: EF-DIN-937Revision: v1Issue date: 2026-09-24Page: 2 / 2
