DIN 34800 Online Drawing Generator & Dimensions

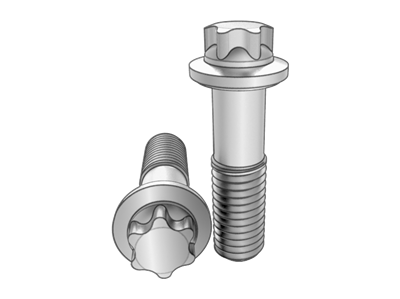

Hexalobular head bolts with small flange-L≤10d

Use this DIN 34800 online drawing generator to review the Hexalobular head bolts with small flange-L≤10d geometry and configure diameter, pitch, length and head dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 34800, DIN34800, DIN 34800 drawing and DIN 34800 dimensions refer to this page.

Standards
  • DIN 34800
Back to Spline head boltsCompare DIN 34800 equivalents and replacement →

Create Your DIN 34800 Drawing Online

Use this DIN 34800 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 34800 or DIN34800, this online drawing tool covers the same Hexalobular head bolts with small flange-L≤10d standard reference.

Configure Your DIN 34800 Hexalobular head bolts with small flange-L≤10d Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 34800

Hexalobular head bolts with small flange-L≤10d

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 34800
DIN 34800 Hexalobular head bolts with small flange-L≤10d
Product code
Product specification
M4x40
Product standard
DIN 34800
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 34800 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M4
P
0.7
L
39.5~40.5
b
35
da
4.7
dc
7.88
ds
3.55
e
4.6
k
4.25~4.5
r
0.2
h
1.05~1.3

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-34800Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPda/maxdc/maxdsek/maxk/minr/minh/minh/max
M40.74.77.883.55 4.64.54.250.21.051.3
M50.85.78.884.48 5.555.55.250.21.451.7
M616.810.885.35 7.36.56.250.251.551.8
M81|1.259.213.737.19 9.28.27.950.42.252.5
M101|1.25|1.511.216.839.03 10.95109.750.42.953.2
M121.25|1.5|1.7513.718.8310.86 12.651211.750.63.63.9
M141.5|215.721.9312.70 16.41413.750.63.94.2
M161.5|217.725.0914.70 18.151615.750.64.85.1
M181.5|2|2.520.228.0416.38 21.851817.750.64.95.2
M201.5|2|2.522.431.0918.38 21.852019.750.66.26.5
Document No.: EF-DIN-34800Revision: v1Issue date: 2026-09-24Page: 2 / 2
