Create Your DIN 34801 Drawing Online

Use this DIN 34801 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 34801 or DIN34801, this online drawing tool covers the same Hexalobular head bolts with large flange standard reference.

Configure Your DIN 34801 Hexalobular head bolts with large flange Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

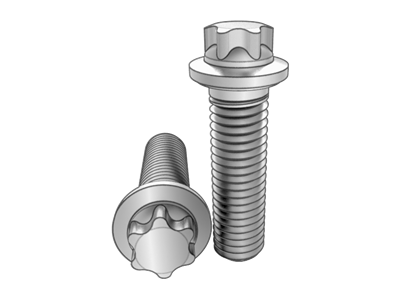

DIN 34801 Hexalobular head bolts with large flange

Product code

Product specification

M5x45

Product standard

DIN 34801

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

0.8

44.5~45.5

5.7

11.8

7.3

6.25~6.5

0.2

1.45~1.7

max = maximum; min = minimum

Material

Material type

Steel

Grade

Thread

Tolerance

Standard

Mechanical properties

Property class

45H

Standard

Tolerance

Product grade

Standard

Surface defects

Surface Treatment

Inspection & packaging

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	da/max	dc/max	ds/max	ds/min	e	k/max	k/min	r/min	h/max	h/min
M5	0.8	5.7	11.8	5	4.82	7.3	6.5	6.25	0.2	1.7	1.45
M6	1	6.8	14.2	6	5.82	9.2	7.5	7.25	0.25	2	1.75
M8	1.25	9.2	17.9	8	7.78	10.95	10	9.75	0.4	2.9	2.65
M10	1.5	11.2	21.8	10	9.78	12.65	12	11.75	0.4	3.9	3.6
M12	1.75	13.7	26	12	11.73	16.4	14	13.75	0.6	4.4	4.1
M14	2	15.7	29.9	14	13.73	18.15	16	15.75	0.6	5.4	5.1
M16	2	17.7	34.5	16	15.73	21.85	19	18.75	0.6	5.8	5.5
M18	2.5	20.2	38.6	18	17.73	25.4	21.5	21.25	0.6	6.4	6
M20	2.5	22.4	42.8	20	19.67	28.9	24	23.75	0.8	6.9	6.5

Product parameters

M5x45

Dimension	Parameter (mm)
d
P
L
L max
L min
da max
dc max
e
k max
k min
r min
h max
h min

Technical conditions

Material	Material type
Material	Grade
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
