ASME B18.2.2 Table 10 Online Drawing Generator & Dimensions

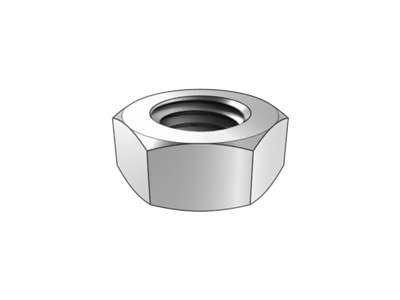

Heavy hex nuts

Use this ASME B18.2.2 Table 10 online drawing generator to review the Heavy hex nuts geometry and configure thread diameter, pitch, width across flats and nut height. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for ASME B18.2.2 Table 10, ASMEB18.2.2Table10, ASME B18.2.2 Table 10 drawing and ASME B18.2.2 Table 10 dimensions refer to this page.

Standards

ASME B18.2.2 Table 10

Create Your ASME B18.2.2 Table 10 Drawing Online

Use this ASME B18.2.2 Table 10 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as ASME B18.2.2 Table 10 or ASMEB18.2.2Table10, this online drawing tool covers the same Heavy hex nuts standard reference.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

ASME B18.2.2 Table 10 Heavy hex nuts

Product code

Product specification

1/2"-13

Product standard

ASME B18.2.2 Table 10

Material / grade

Steel 45

Unit

inch

Mechanical properties

45H

Dimension

Parameter (inch)

Dimension

Parameter (inch)

1/2

0.85~0.875

0.969~1.01

0.464~0.504

max = maximum; min = minimum

Material

Material type

Steel

Grade

Thread

Tolerance

Standard

Mechanical properties

Property class

45H

Standard

Tolerance

Product grade

Standard

Surface defects

Surface Treatment

Inspection & packaging

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: inch

Dimension	P	s/min	s/max	e/min	e/max	k/min	k/max
1	8\|12\|20	1.575	1.625	1.796	1.876	0.956	1.012
1/4	20\|28\|32	0.448	0.5	0.556	0.577	0.218	0.25
1/2	13\|20\|28	0.85	0.875	0.969	1.01	0.464	0.504
1-1/8	7\|12\|18	1.756	1.812	2.002	2.093	1.079	1.138
1-1/4	7\|12\|18	1.938	2	2.209	2.309	1.187	1.251
1-3/8	6\|12\|18	2.119	2.188	2.416	2.526	1.31	1.378
1-1/2	6\|12\|18	2.3	2.375	2.622	2.742	1.433	1.505
1-5/8	6\|12\|18	2.481	2.562	2.828	2.959	1.556	1.632
1-3/4	5\|8\|12	2.662	2.75	3.035	3.175	1.679	1.759
1-7/8	6	2.844	2.938	3.242	3.392	1.802	1.886
2	4.5	3.025	3.125	3.449	3.608	1.925	2.013
2-1/4	4.5	3.388	3.5	3.862	4.041	2.155	2.251
2-1/2	4	3.75	3.875	4.275	4.474	2.401	2.505
2-3/4	4	4.112	4.25	4.688	4.907	2.647	2.759
3	4	4.475	4.625	5.102	5.34	2.893	3.013
3/8	16\|24\|32	0.669	0.688	0.763	0.794	0.341	0.377
3/4	10\|16\|20	1.212	1.25	1.382	1.443	0.71	0.758
3-1/4	4	4.838	5	5.515	5.774	3.124	3.252
3-1/2	4	5.2	5.375	5.928	6.207	3.37	3.506
3-3/4	4	5.562	5.75	6.341	6.64	3.616	3.76
4	4	5.925	6.125	6.755	7.073	3.862	4.014
5/16	18\|24\|32	0.546	0.562	0.622	0.65	0.28	0.314
5/8	11\|18\|24	1.031	1.062	1.175	1.227	0.587	0.631
7/16	14\|20\|28	0.728	0.75	0.83	0.866	0.403	0.441
7/8	9\|14\|20	1.394	1.438	1.589	1.66	0.833	0.885
9/16	12\|18\|24	0.909	0.938	1.037	1.083	0.526	0.568

Dimension	Parameter (inch)
d
P
s max
s min
e max
e min
k max
k min

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
