ASME B18.22.1 Online Drawing Generator & Dimensions

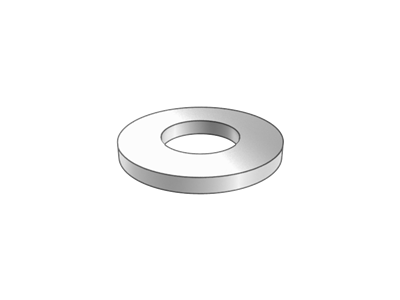

Type A plain washers (narrow)

Use this ASME B18.22.1 online drawing generator to review the Type A plain washers (narrow) geometry and configure inside diameter, outside diameter and thickness. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for ASME B18.22.1, ASMEB18.22.1, ASME B18.22.1 drawing and ASME B18.22.1 dimensions refer to this page.

Standards
  • ASME B18.22.1
Back to Plain washersCompare ASME B18.22.1 equivalents and replacement →

Create Your ASME B18.22.1 Drawing Online

Use this ASME B18.22.1 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as ASME B18.22.1 or ASMEB18.22.1, this online drawing tool covers the same Type A plain washers (narrow) standard reference.

Configure Your ASME B18.22.1 Type A plain washers (narrow) Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

ASME B18.22.1

Type A plain washers (narrow)

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
ASME B18.22.1
ASME B18.22.1 Type A plain washers (narrow)
Product code
Product specification
1/2"
Product standard
ASME B18.22.1
Material / grade
Steel 45
Unit
inch
Mechanical properties
45H
ASME B18.22.1 technical drawing
Dimension
Parameter (inch)
Dimension
Parameter (inch)
d
0.526~0.546
dc
1.055~1.092
h
0.074~0.121

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-ASME-B18-22-1Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: inch

Dimensiond/maxd/mindc/maxdc/minh/maxh/min
11.092 1.0552.03 1.9930.160.108
1/40.296 0.2760.640 0.620.080.051
1/20.546 0.5261.092 1.0550.1210.074
1-1/81.28 1.2432.28 2.2430.160.108
1-1/41.405 1.3682.53 2.4930.1920.136
1-3/81.53 1.4932.78 2.7430.1920.136
1-1/21.655 1.6183.03 2.9930.1920.136
1-5/81.795 1.743.795 3.740.2130.153
1-3/41.92 1.8654.045 3.990.2130.153
1-7/82.045 1.994.295 4.240.2130.153
22.17 2.1154.545 4.490.2130.153
2-1/42.42 2.3654.795 4.740.2480.193
2-1/22.67 2.6155.045 4.990.280.21
2-3/42.94 2.8655.315 5.240.310.228
33.19 3.1155.565 5.490.3270.249
3/160.227 0.2140.515 0.4950.0650.036
3/80.421 0.4010.827 0.8050.080.051
3/40.842 0.8051.499 1.4620.160.108
5/160.359 0.3390.703 0.6810.080.051
5/80.686 0.6491.342 1.3050.1210.074
#60.164 0.1510.390 0.370.0650.036
7/160.484 0.4640.937 0.9150.080.051
7/80.968 0.9311.78 1.7430.160.108
#80.196 0.1830.453 0.4330.0650.036
9/160.609 0.5891.186 1.1490.1210.074
#100.265 0.2450.577 0.5570.0650.036
#120.265 0.2450.577 0.5570.080.051
Document No.: EF-ASME-B18-22-1Revision: v1Issue date: 2026-09-24Page: 2 / 2
