ASTM F436 Hardened Washers
| Standard | ASTM F436 / ASTM F3125 ref / ASTM A193 ref |
|---|---|
| Material | ASTM F436 Type 1 / 1045 / 40Cr |
| Strength Grade | Hardened |
| Size Range | M12-M48 / 1/2"-3" |
| Surface Treatment | Plain / HDG / Zinc Phosphate |
01
Product Description
Product Description & Key Specifications
ASTM F436 hardened washers are supplied for high-strength structural bolts, ASTM F3125 assemblies, ASTM A193 stud bolting, pressure flange bolting and heavy machinery joints where hardened bearing support is required. Material options include ASTM F436 Type 1, 1045 and 40Cr.
Hardened washers distribute load and provide a suitable bearing surface under heavy hex nuts or bolt heads in structural and pressure bolting systems. They are not interchangeable with ordinary flat washers when the project specifies hardness, dimensions, chamfer, coating or ASTM F436 compliance.
Plain finish is used in controlled or specified assemblies, HDG is common for outdoor structural bolting, and zinc phosphate may be specified for selected machinery or flange bolting applications. Washer diameter, thickness, hardness and coating must match the bolt system and project standard.
| Product type | ASTM F436 hardened washers / structural washers |
|---|---|
| Standards | ASTM F436 / ASTM F3125 reference / ASTM A193 reference |
| Material | ASTM F436 Type 1 / 1045 / 40Cr |
| Strength grade | Hardened washer |
| Size range | M12-M48 / 1/2 in-3 in |
| Common models | M16, M20, M22, M24, M30, 3/4 in, 7/8 in, 1 in |
| Washer form | Circular hardened washer, chamfer and dimensions by standard |
| Surface finish | Plain / Hot-dip galvanized / Zinc phosphate |
| Documentation | MTC, CoC, hardness report and dimensional report on request |
Dimensions & SpecificationsASTM F436

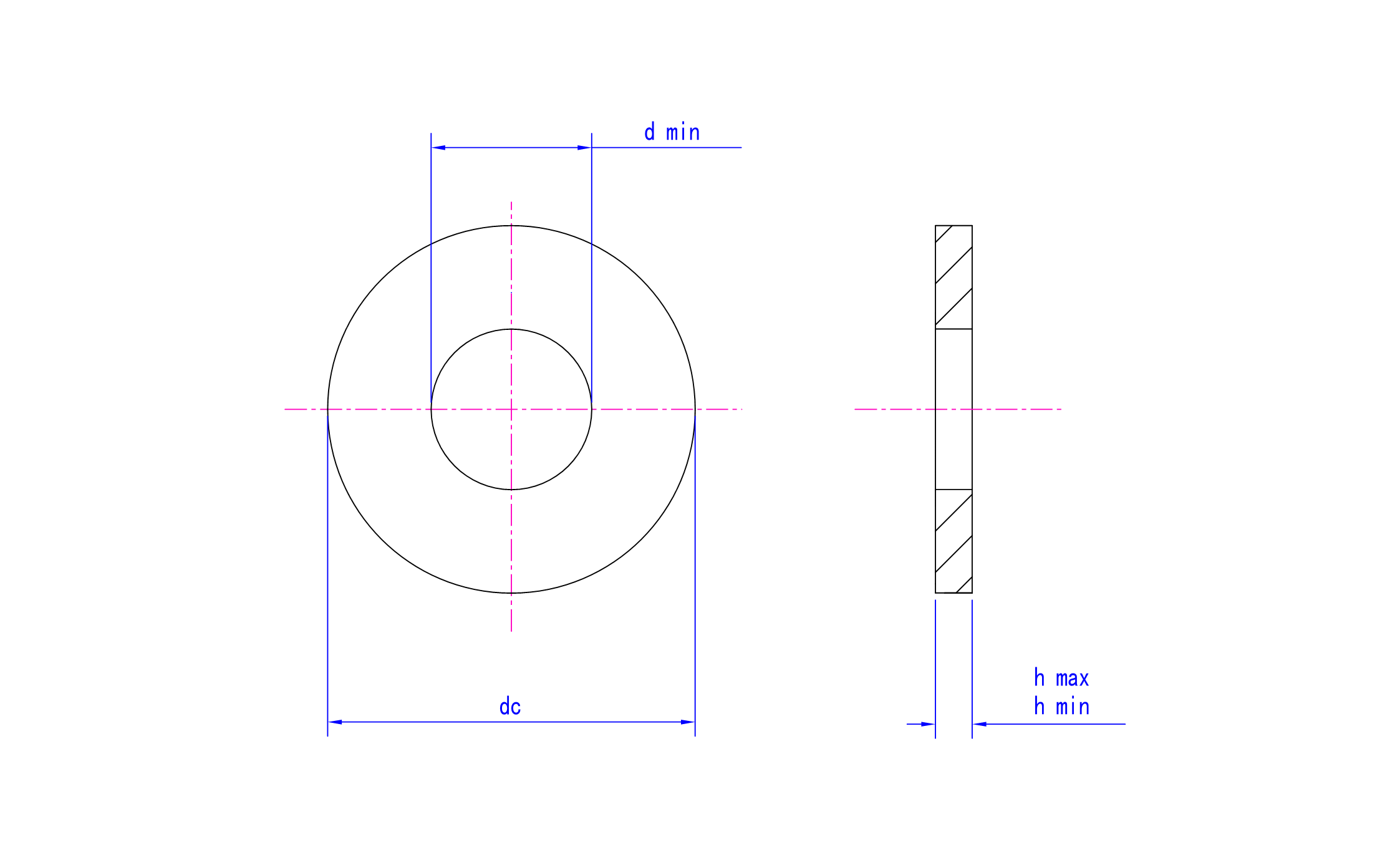

Technical Drawing
Dimensional Table
| Parameter | 1 | 1/4 | 1/2 | 1-1/8 | 1-1/4 | 1-3/8 | 1-1/2 | 1-3/4 | 2 | 2-1/4 | 2-1/2 | 2-3/4 | 3 | 3/8 | 3/4 | 3-1/4 | 3-1/2 | 3-3/4 | 4 | 5/16 | 5/8 | 7/16 | 7/8 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| dc | 2.000 | 0.625 | 1.063 | 2.250 | 2.500 | 2.750 | 3.000 | 3.375 | 3.750 | 4.000 | 4.500 | 5.000 | 5.500 | 0.813 | 1.469 | 6.000 | 6.500 | 7.000 | 7.500 | 0.688 | 1.313 | 0.922 | 1.750 |
| d/min | 1.125 | 0.281 | 0.531 | 1.250 | 1.375 | 1.500 | 1.625 | 1.875 | 2.125 | 2.375 | 2.625 | 2.875 | 3.125 | 0.406 | 0.813 | 3.375 | 3.625 | 3.875 | 4.125 | 0.344 | 0.688 | 0.469 | 0.938 |
| h/min | 0.136 | 0.051 | 0.097 | 0.136 | 0.136 | 0.136 | 0.136 | 0.178 | 0.178 | 0.240 | 0.240 | 0.240 | 0.240 | 0.051 | 0.122 | 0.240 | 0.240 | 0.240 | 0.240 | 0.051 | 0.122 | 0.051 | 0.136 |
| h/max | 0.177 | 0.080 | 0.177 | 0.177 | 0.177 | 0.177 | 0.177 | 0.280 | 0.280 | 0.340 | 0.340 | 0.340 | 0.340 | 0.080 | 0.177 | 0.340 | 0.340 | 0.340 | 0.340 | 0.080 | 0.177 | 0.080 | 0.177 |
02
Selection
Selection Advantages by Application
ASTM F3125 Structural Bolting
F436 washers are commonly paired with A325 and A490 structural bolts in bridge and steel frame connections. M20, M22 and M24 washers are frequent RFQ sizes.
Structural fastenersASTM A193 Stud Bolting
Hardened washers can be specified for pressure flange bolting and heavy equipment joints using ASTM A193 studs. Confirm washer use against flange standard and project specification.
Oil and gas fastenersPower Generation Equipment
F436 hardened washers support baseplates, heavy machinery joints and structural steel around power generation equipment where hardened bearing surfaces are required.
Power generation fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Stamping or machining followed by heat treatmentIncoming ASTM F436 Type 1 / 1045 / 40Cr material verification
Hardening and tempering to washer specificationHardness testing and dimensional inspection by lot
Plain, HDG or zinc phosphate surface finishingCoating thickness, visual inspection and nut/bolt fit review when specified
Standard and project-specific washer supplyInner diameter, outer diameter, thickness and chamfer checks
Bulk, kitted or structural bolting assembly packagingMTC, CoC and inspection report prepared on request
05
FAQ
Common Questions Before RFQ
What are ASTM F436 hardened washers used for?
They are used with high-strength structural bolts, anchor rods and selected stud bolting assemblies where a hardened bearing washer is required by the project standard.
Can ordinary flat washers replace ASTM F436 washers?
No. If the specification requires ASTM F436, ordinary flat washers should not be substituted because hardness, dimensions and bearing performance may differ.
What finishes are available?
Common finishes include plain, hot-dip galvanized and zinc phosphate. Finish selection should match the bolt/nut system and project corrosion requirement.
What sizes are commonly requested?
Common RFQ sizes include M16, M20, M22, M24, M30, 3/4 in, 7/8 in and 1 in. Final size should match the bolt or anchor rod standard.
Can hardness reports be supplied?
Yes. Hardness reports, material certificates, CoC and dimensional inspection reports can be supplied when requested before production or shipment.
Need ASTM F436 hardened washers?
Send your washer size, standard, finish, bolt system, quantity, hardness report and certificate requirements. Our team can quote F436 washers alone or as part of structural bolting packages.
Request a Quote
