ASTM F436 Online Drawing Generator & Dimensions

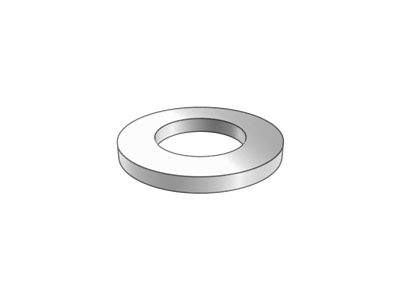

Hardened steel circular washers

Use this ASTM F436 online drawing generator to review the Hardened steel circular washers geometry and configure inside diameter, outside diameter and thickness. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for ASTM F436, ASTMF436, ASTM F436 drawing and ASTM F436 dimensions refer to this page.

Standards
  • ASTM F436
Back to Plain washers

Create Your ASTM F436 Drawing Online

Use this ASTM F436 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as ASTM F436 or ASTMF436, this online drawing tool covers the same Hardened steel circular washers standard reference.

Configure Your ASTM F436 Hardened steel circular washers Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

ASTM F436

Hardened steel circular washers

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
ASTM F436
ASTM F436 Hardened steel circular washers
Product code
Product specification
1/2"
Product standard
ASTM F436
Material / grade
Steel 45
Unit
inch
Mechanical properties
45H
ASTM F436 technical drawing
Dimension
Parameter (inch)
Dimension
Parameter (inch)
d
1/2 / min:0.531
dc
1.063
h
0.097 ~0.177

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-ASTM-F436Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: inch

Dimensiondcd/minh/minh/max
12.000 1.125 0.136 0.177
1/40.625 0.281 0.051 0.080
1/21.063 0.531 0.097 0.177
1-1/82.250 1.250 0.136 0.177
1-1/42.500 1.375 0.136 0.177
1-3/82.750 1.500 0.136 0.177
1-1/23.000 1.625 0.136 0.177
1-3/43.375 1.875 0.178 0.280
23.750 2.125 0.178 0.280
2-1/44.000 2.375 0.240 0.340
2-1/24.500 2.625 0.240 0.340
2-3/45.000 2.875 0.240 0.340
35.500 3.125 0.240 0.340
3/80.813 0.406 0.051 0.080
3/41.469 0.813 0.122 0.177
3-1/46.000 3.375 0.240 0.340
3-1/26.500 3.625 0.240 0.340
3-3/47.000 3.875 0.240 0.340
47.500 4.125 0.240 0.340
5/160.688 0.344 0.051 0.080
5/81.313 0.688 0.122 0.177
7/160.922 0.469 0.051 0.080
7/81.750 0.938 0.136 0.177
Document No.: EF-ASTM-F436Revision: v1Issue date: 2026-09-24Page: 2 / 2
