Create Your ASTM F436M Drawing Online

Use this ASTM F436M drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as ASTM F436M or ASTMF436M, this online drawing tool covers the same Metric hardened steel washers standard reference.

Configure Your ASTM F436M Metric hardened steel washers Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

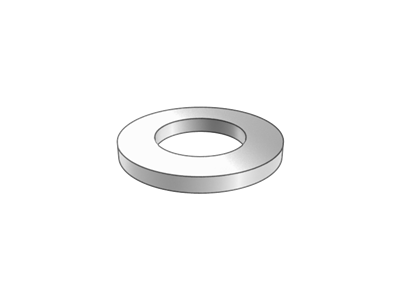

ASTM F436M Metric hardened steel washers

Product code

Product specification

Φ12

Product standard

ASTM F436M

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

14~14.4

25.7~27

3.1~4.6

max = maximum; min = minimum

Material

Material type

Steel

Grade

Thread

Tolerance

Standard

Mechanical properties

Property class

45H

Standard

Tolerance

Product grade

Standard

Surface defects

Surface Treatment

Inspection & packaging

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	d/max	d/min	dc/max	dc/min	h/max	h/min
Φ12	14.4	14	27	25.7	4.6	3.1
Φ14	16.4	16	30	28.7	4.6	3.1
Φ16	18.4	18	34	32.4	4.6	3.1
Φ20	22.5	22	42	40.4	4.6	3.1
Φ22	24.5	24	44	42.4	4.6	3.4
Φ24	26.5	26	50	48.4	4.6	3.4
Φ27	30.5	30	56	54.1	4.6	3.4
Φ30	33.6	33	60	58.1	4.6	3.4
Φ36	39.6	39	72	70.1	4.6	3.4
Φ42	45.6	45	84	81.8	7.2	4.6
Φ48	52.7	52	95	92.8	7.2	4.6
Φ56	62.7	62	107	104.8	8.7	6.1
Φ64	70.7	70	118	115.8	8.7	6.1
Φ72	78.7	78	130	127.5	8.7	6.1
Φ80	86.9	86	142	139.5	8.7	6.1
Φ90	96.9	96	159	156.5	8.7	6.1
Φ100	107.9	107	176	173.5	8.7	6.1

Product parameters

Φ12

Dimension	Parameter (mm)
d
d max
d min
dc max
dc min
h max
h min

Technical conditions

Material	Material type
Material	Grade
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
