DIN EN 14399-9 Online Drawing Generator & Dimensions

Load indicating washers for HS bolting

Use this DIN EN 14399-9 online drawing generator to review the Load indicating washers for HS bolting geometry and configure inside diameter, outside diameter and thickness. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN EN 14399-9, DINEN14399-9, DIN EN 14399-9 drawing and DIN EN 14399-9 dimensions refer to this page.

Standards
  • DIN EN 14399-9
Back to Plain washersCompare DIN EN 14399-9 equivalents and replacement →

Create Your DIN EN 14399-9 Drawing Online

Use this DIN EN 14399-9 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN EN 14399-9 or DINEN14399-9, this online drawing tool covers the same Load indicating washers for HS bolting standard reference.

Configure Your DIN EN 14399-9 Load indicating washers for HS bolting Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN EN 14399-9

Load indicating washers for HS bolting

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN EN 14399-9

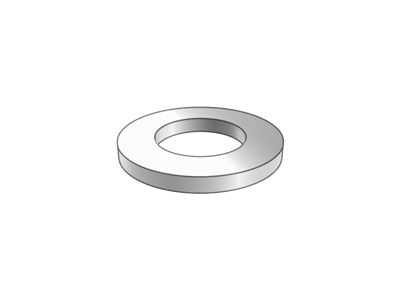

DIN EN 14399-9 Load indicating washers for HS bolting
Product code
Product specification
Φ12
Product standard
DIN EN 14399-9
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN EN 14399-9 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
12.1~12.35
dc
22.7~24
h
2.7~3.3

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-EN-14399-9Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimensiond/mind/maxdc/mindc/maxh/minh/max
Φ1212.112.3522.7242.73.3
Φ1616.116.3527.7293.74.3
Φ2020.120.434.4363.74.3
Φ2222.322.637.4393.74.3
Φ2424.224.541.4433.74.3
Φ2727.227.5546.4484.45.6
Φ3030.230.5550.1524.45.6
Φ3636.236.5560.1625.46.6
Document No.: EF-DIN-EN-14399-9Revision: v1Issue date: 2026-09-24Page: 2 / 2
