DIN 7504K Online Drawing Generator & Dimensions

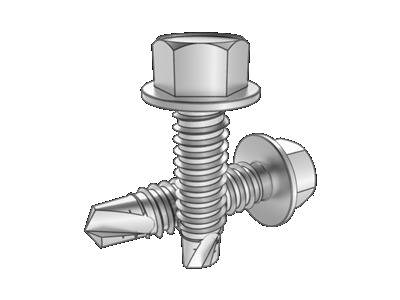

Hexagon washer head drilling screws with tapping screw thread

Use this DIN 7504K online drawing generator to review the Hexagon washer head drilling screws with tapping screw thread geometry and configure diameter, pitch, length, head and drive dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 7504K, DIN7504K, DIN 7504K drawing and DIN 7504K dimensions refer to this page.

Standards

DIN 7504K

Create Your DIN 7504K Drawing Online

Use this DIN 7504K drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 7504K or DIN7504K, this online drawing tool covers the same Hexagon washer head drilling screws with tapping screw thread standard reference.

Configure Your DIN 7504K Hexagon washer head drilling screws with tapping screw thread Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

DIN 7504K Hexagon washer head drilling screws with tapping screw thread

Product code

Product specification

ST2.9x9.5

Product standard

DIN 7504K

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

ST2.9

1.1

8.75~10.25

1.1

0.4

5.8~6.3

4.28

2.5~2.8

0.4

3.82~4

Drilling plate thickness

0.7~1.9

6.25

max = maximum; min = minimum

Material

Material type

Steel

Grade

Thread

Tolerance

Standard

Mechanical properties

Property class

45H

Standard

Tolerance

Product grade

Standard

Surface defects

Surface Treatment

Inspection & packaging

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	a/max	h/min	dc/max	dc/min	e/min	k/max	k/min	r/max	s/max	s/min	Drilling plate thickness/min	Drilling plate thickness/max	z/max
ST2.9	1.1	1.1	0.4	6.3	5.8	4.28	2.8	2.5	0.4	4	3.82	0.7	1.9	6.25
ST3.5	1.3	1.3	0.6	8.3	7.6	5.96	3.4	3	0.5	5.5	5.32	0.7	2.25	6.65
ST3.9	1.3	1.3	0.6	8.3	7.6	5.96	3.4	3	0.5	5.5	5.32	0.7	2.4	7.2
ST4.2	1.4	1.4	0.8	8.8	8.1	7.59	4.1	3.6	0.6	7	6.78	1.75	3	8.7
ST4.8	1.6	1.6	0.9	10.5	9.8	8.71	4.3	3.8	0.7	8	7.78	1.75	4.4	9.3
ST5.5	1.8	1.8	1	11	10	8.71	5.4	4.8	0.8	8	7.78	1.75	5.25	11
ST6.3	1.8	1.8	1	13.5	12.2	10.95	5.9	5.3	0.9	10	9.78	2	6	12

Product parameters

ST2.9x9.5

Dimension	Parameter (mm)
d
P
L
L max
L min
a max
h min
dc max
dc min
e min
k max
k min
r max
s max
s min
Drilling plate thickness max
Drilling plate thickness min
z max

Technical conditions

Material	Material type
Material	Grade
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
