Self Drilling Screws
| Standard | DIN 7504 · ISO 15480 |
|---|---|
| Material | C1022 Steel |
| Strength Grade | Case Hardened |
| Size Range | ST2.9-ST6.3 |
| Surface Treatment | Zinc Plated |
01
Product Description
Product Description & Key Specifications
Self drilling screws combine a drill point and tapping thread so they can drill through suitable sheet metal and form the mating thread in one installation step. They are used in roofing, cladding, HVAC ducts, electrical enclosures, light steel framing and general sheet metal fabrication.
This range uses C1022 case hardened steel to DIN 7504 / ISO 15480 with ST2.9-ST6.3 size coverage and zinc plated finish. The drill point length, drilling capacity, thread form, head style, drive type and coating must match the sheet thickness and installation speed.
Self drilling screws should not be confused with ordinary self tapping screws. If the hole is not pre-drilled, the drill point selection is critical. RFQs should include material thickness, screw size, length, point type, head style, washer requirement and corrosion requirement.
| Product type | Self drilling screws / drill point screws |
|---|---|
| Standards | DIN 7504 / ISO 15480 |
| Material | C1022 case hardened steel |
| Strength grade | Case hardened |
| Size range | ST2.9-ST6.3 |
| Common models | ST3.5 x 13, ST4.2 x 16, ST4.8 x 19, ST5.5 x 25, ST6.3 x 32 |
| Point type | Self drilling point selected by drilling capacity |
| Surface finish | Zinc plated |
| Matched hardware | Sheet metal, roofing sheets, cladding panels, HVAC ducts and light steel framing |
| Documentation | CoC, material certificate, hardness, dimensional and coating report on request |
Dimensions & SpecificationsDIN 7504 / ISO 15480

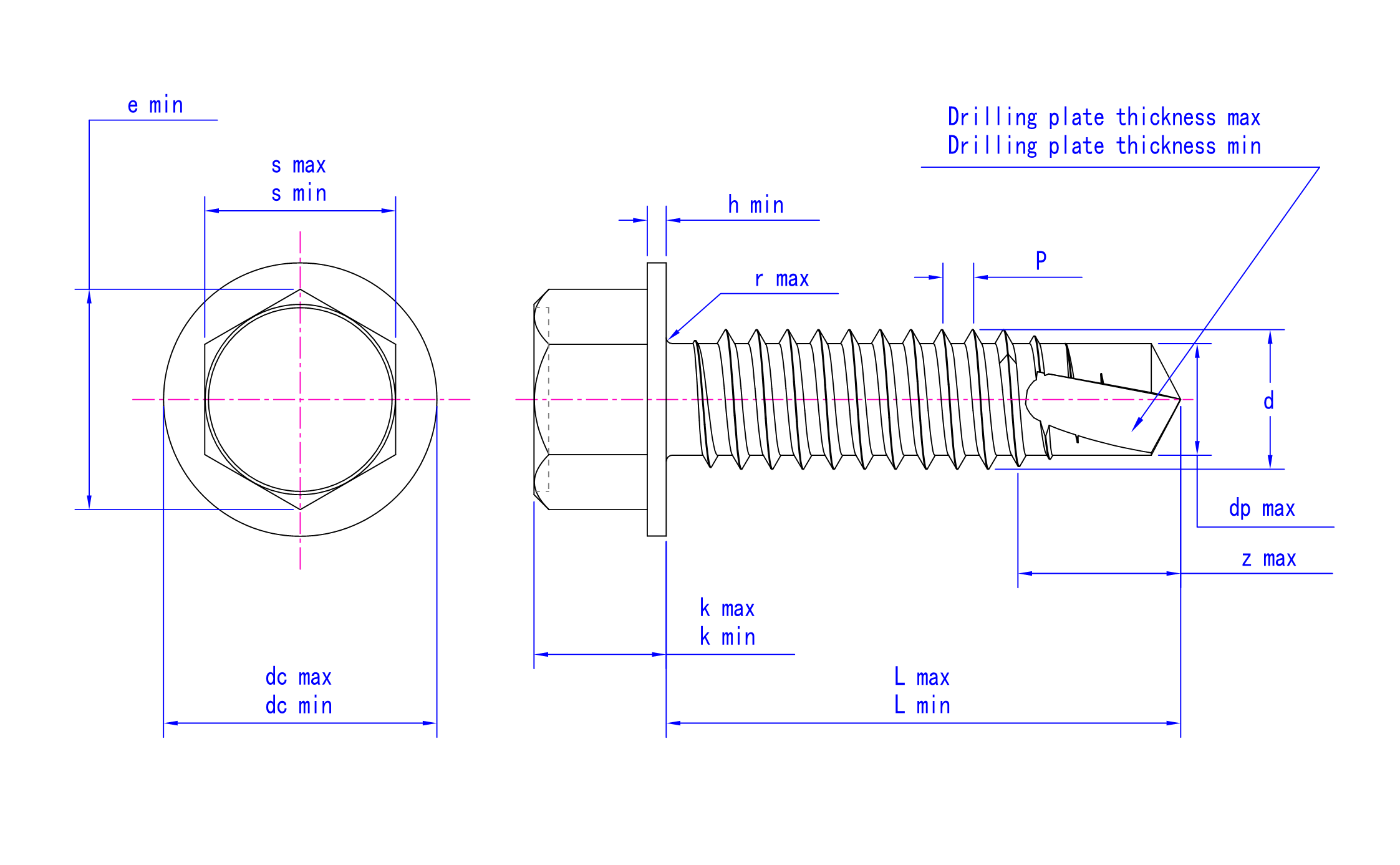

Technical Drawing
Dimensional Table
| Parameter | ST3.5 | ST3.9 | ST4.2 | ST4.8 | ST5.5 | ST6.3 |
|---|---|---|---|---|---|---|
| P | 1.3 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 |
| h/min | 0.6 | 0.6 | 0.9 | 0.9 | 1 | 1 |
| dc/max | 8.3 | 8.3 | 8.8 | 10.5 | 11 | 13.2 |
| dc/min | 7.6 | 7.6 | 8.2 | 9.8 | 10 | 12.2 |
| e/min | 5.96 | 5.96 | 7.59 | 8.71 | 8.71 | 10.95 |
| k/max | 3.45 | 3.45 | 4.25 | 4.45 | 5.45 | 6.45 |
| k/min | 3.2 | 3.2 | 4 | 4.15 | 5.15 | 6.15 |
| r/max | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 |
| s/max | 5.5 | 5.5 | 7 | 8 | 8 | 10 |
| s/min | 5.32 | 5.32 | 6.78 | 7.78 | 7.78 | 9.78 |
| Drilling plate thickness/min | 0.7 | 0.7 | 1.75 | 1.75 | 1.75 | 2 |
| Drilling plate thickness/max | 2.25 | 2.4 | 3 | 4.4 | 5.25 | 6 |
| dp/max | 2.8 | 3.1 | 3.6 | 4.1 | 4.8 | 5.8 |
| z/max | 6.65 | 7.2 | 8.7 | 8.3 | 11 | 12 |
Engineering references
Technical resources
Review the applicable dimensions, drawing and standard relationship before confirming the ordered specification.02
Selection
Selection Advantages by Application
Roofing and Cladding Panels
Self drilling screws are used for metal roofing and cladding where drilling and fastening in one operation improves installation speed.
Construction fastenersHVAC and Electrical Enclosures
ST3.5-ST4.8 drill point screws support ducts, enclosures, panels and light sheet metal fabrication.
Industrial equipment fastenersLight Steel Framing and Site Work
ST5.5-ST6.3 screws can be specified for thicker sheet and light steel framing when drilling capacity and point type are matched to material thickness.
Construction fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Cold heading, drill point forming and thread rollingC1022 material and wire diameter verification
Case hardening for drilling and thread forming performanceSurface hardness, core hardness and case depth inspection
DIN 7504 / ISO 15480 head and point geometryDrill point, thread profile, head dimensions and length inspection
Zinc plating for general corrosion protectionCoating thickness and visual inspection
Bulk, carton or site packagingCoC, hardness and dimensional reports prepared on request
05
FAQ
Common Questions Before RFQ
What are self drilling screws used for?
They drill and fasten sheet metal in one operation, commonly in roofing, cladding, ducts, enclosures and light steel framing.
Do self drilling screws need a pilot hole?
Usually no. The drill point creates the hole, but drilling capacity must match the material thickness.
What is the difference between DIN 7504 and ISO 15480?
Both are references for self drilling screw geometry. Use the project drawing or standard to confirm dimensions and head style.
What material is used?
C1022 case hardened steel is used for drilling and thread forming performance.
What RFQ details are needed?
Send screw size, length, head style, drill point type, drilling thickness, coating and quantity.
Need self drilling screws for sheet metal installation?
Send size, length, head style, point type, drilling thickness, coating and quantity. We can quote DIN 7504 / ISO 15480 zinc plated self drilling screws for roofing, cladding and equipment panels.
