DIN 7504P Online Drawing Generator & Dimensions

Hexagon flange head drilling screws

Use this DIN 7504P online drawing generator to review the Hexagon flange head drilling screws geometry and configure diameter, pitch, length, head and drive dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 7504P, DIN7504P, DIN 7504P drawing and DIN 7504P dimensions refer to this page.

Standards
  • DIN 7504P
Back to Self-drilling screwsCompare DIN 7504P equivalents and replacement →

Create Your DIN 7504P Drawing Online

Use this DIN 7504P drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 7504P or DIN7504P, this online drawing tool covers the same Hexagon flange head drilling screws standard reference.

Configure Your DIN 7504P Hexagon flange head drilling screws Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 7504P

Hexagon flange head drilling screws

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 7504P

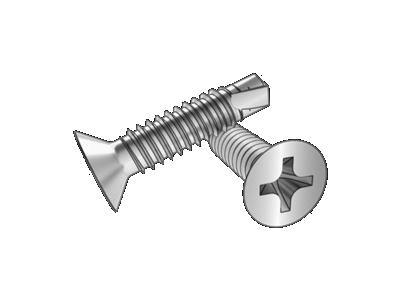

DIN 7504P Hexagon flange head drilling screws
Product code
Product specification
ST2.9x9.5
Product standard
DIN 7504P
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 7504P technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
ST2.9
P
1.1
L
8.75~10.25
a
1.1
dk
5.2~5.5
k
1.7
No.
1
M
3
t
1.4~1.7
dp
2.3
Drilling plate thickness
0.7~1.9
z
6.25

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-7504PRevision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPa/maxdk/maxdk/minkNo.Mt/mint/maxdp/maxDrilling plate thickness/minDrilling plate thickness/maxz/max
ST2.91.11.15.55.21.7131.41.72.30.71.96.25
ST3.51.31.36.86.442.124.21.622.122.80.72.256.65
ST3.91.31.37.57.142.324.62.032.533.10.72.47.2
ST4.21.41.48.17.742.524.72.112.623.61.7538.7
ST4.81.61.69.59.14325.12.593.14.11.754.48.3
ST5.51.81.810.810.373.436.82.953.534.81.755.2511
ST6.31.81.812.411.973.837.13.333.915.82612
Document No.: EF-DIN-7504PRevision: v1Issue date: 2026-09-24Page: 2 / 2
