DIN 1445 Online Drawing Generator & Dimensions

Clevis pins with head and stud end

Use this DIN 1445 online drawing generator to review the Clevis pins with head and stud end geometry and configure pin diameter, length, fit and tolerances. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 1445, DIN1445, DIN 1445 drawing and DIN 1445 dimensions refer to this page.

Standards
  • DIN 1445
Back to T-boltsCompare DIN 1445 equivalents and replacement →

Create Your DIN 1445 Drawing Online

Use this DIN 1445 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 1445 or DIN1445, this online drawing tool covers the same Clevis pins with head and stud end standard reference.

Configure Your DIN 1445 Clevis pins with head and stud end Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 1445

Clevis pins with head and stud end

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 1445

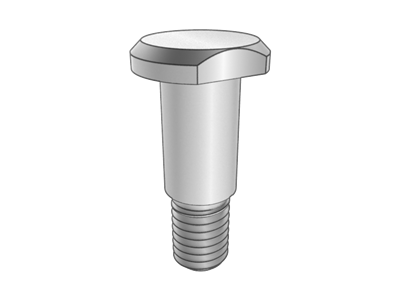

DIN 1445 Clevis pins with head and stud end
Product code
Product specification
Φ8x16
Product standard
DIN 1445
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 1445 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
7.91~8
L
15.65~16.35
b
11
d1
M6
dk
13.57~14
k
2.875~3.125
r
0.6
s
11
P1
1

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-1445Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimensiond/maxd/minb/mind1dk/maxdk/mink/maxk/minrsP1
Φ887.9111M61413.573.1252.8750.6111
Φ10109.9114M81817.574.153.850.6131.25
Φ121211.8917M102019.484.153.850.6171.5
Φ141413.8920M122221.484.153.850.6191.75
Φ161615.8920M122524.484.654.350.6221.75
Φ181817.8920M122827.485.154.851241.75
Φ202019.8725M163029.485.154.851272
Φ222221.8725M163332.385.655.351302
Φ242423.8729M203635.386.155.851322.5
Φ272726.8729M204039.386.155.851362.5
Φ303029.8736M244443.388.187.821363
Φ333332.8436M244746.388.187.821413
Φ363635.8439M275049.388.187.821463
Φ404039.8442M305554.268.187.821503.5
Φ454544.8445M336059.269.188.821553.5
Φ505049.8449M366665.269.188.821604
Φ555554.8152M397271.2611.21510.7851654
Φ606059.8158M427877.2612.21511.7851704.5
Φ707069.8161M459089.1313.21512.7851804.5
Φ808079.8168M5210099.1313.21512.7851905
Φ909089.7878M56110109.1313.21512.78511005.5
Φ10010099.7884M64120119.1313.21512.78511106
Document No.: EF-DIN-1445Revision: v1Issue date: 2026-09-24Page: 2 / 2
