Hex Flange Nuts
| Standard | DIN 6923 · ISO 4161 |
|---|---|
| Material | 35K / 10B21 |
| Strength Grade | Grade 8 / 10 |
| Size Range | M5-M16 |
| Surface Treatment | Zinc Plated |
01
Product Description
Product Description & Key Specifications
Hex flange nuts provide an integrated washer-like bearing face under the nut, improving load distribution and assembly speed compared with a separate nut and washer in many bracket, automotive and equipment assemblies. This range follows DIN 6923 / ISO 4161 in 35K / 10B21 with Grade 8 / 10 options.
Flange nuts are commonly paired with hex flange bolts, weld studs, machine bolts and bracket fasteners. Serrated or non-serrated form, proof load, thread fit, coating and mating bolt grade should be confirmed before ordering, especially for automotive and vibration-sensitive assemblies.
Zinc plated finish is used for general corrosion protection in indoor, automotive and equipment environments. Common RFQs include M6, M8, M10, M12 and M16 zinc plated flange nuts supplied with flange bolts or as line-side hardware.
| Product type | Hex flange nuts |
|---|---|
| Standards | DIN 6923 / ISO 4161 |
| Material | 35K / 10B21 |
| Strength grade | Grade 8 / 10 |
| Size range | M5-M16 |
| Common models | M5, M6, M8, M10, M12, M14, M16 |
| Thread type | Metric internal thread, coarse thread by standard or drawing |
| Surface finish | Zinc plated |
| Matched hardware | Hex flange bolts, weld studs and machine bolts |
| Documentation | MTC, CoC, proof load, dimensional and coating report on request |
Dimensions & SpecificationsDIN 6923 / ISO 4161

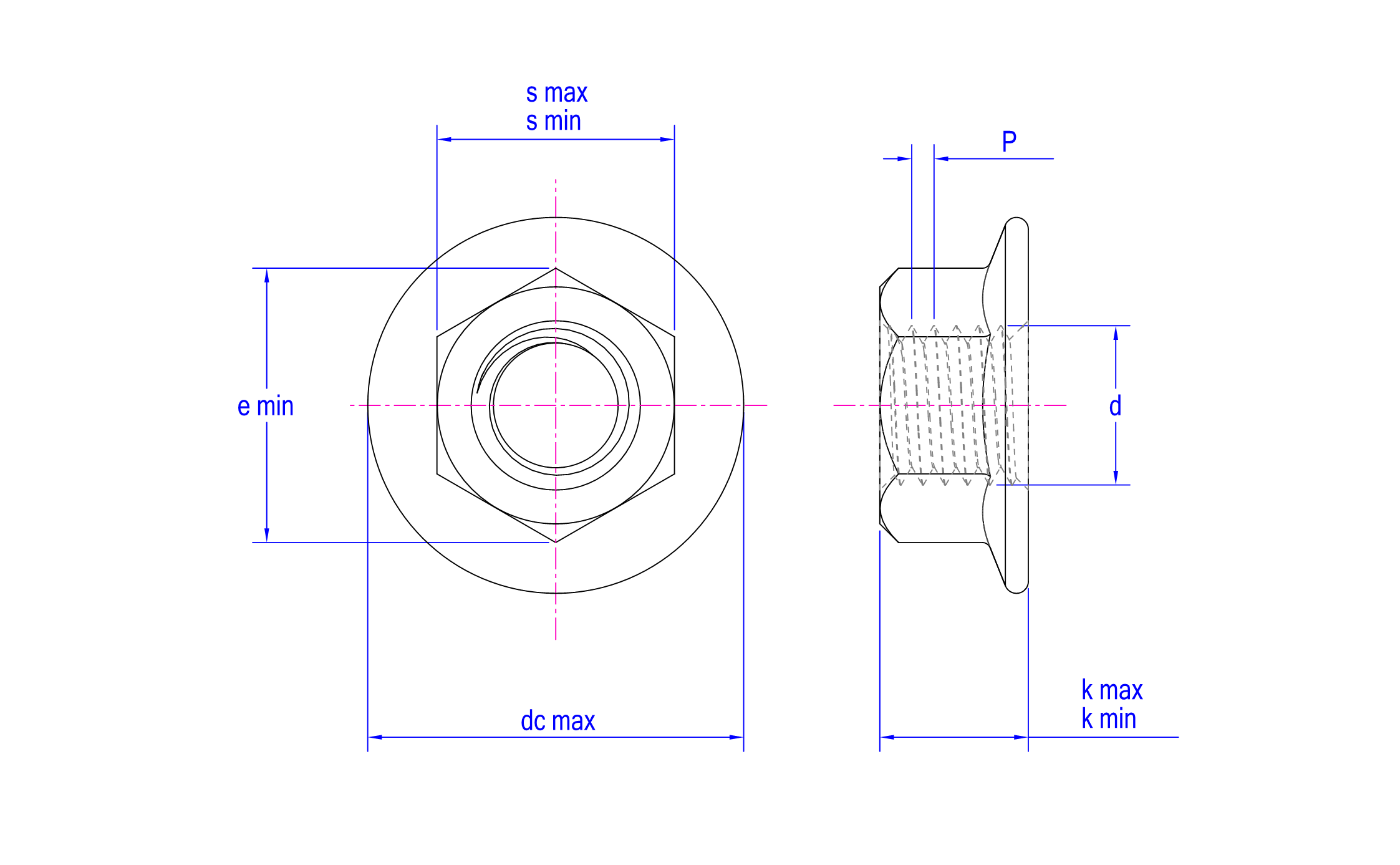

Technical Drawing
Dimensional Table
| Parameter | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | 37 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.5 | 0.7 | 0.8 | 1 | 1|1.25 | 1|1.25|1.5 | 1.25|1.5|1.75 | 1.5|2 | 1.5|2 | 1.5|2|2.5 | 2.5 |
| dc/max | 8 | 10 | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 | — |
| e/min | 6.01 | 7.66 | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 | — |
| k/max | 3.5 | 4.5 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | — |
| k/min | 3.2 | 4.2 | 4.7 | 5.7 | 7.6 | 9.6 | 11.6 | 13.3 | 15.3 | 18.9 | — |
| s/max | 5.5 | 7 | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 | — |
| s/min | 5.32 | 6.78 | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.67 | — |
Engineering references
Technical resources
Review the applicable dimensions, drawing and standard relationship before confirming the ordered specification.02
Selection
Selection Advantages by Application
Automotive and EV Assembly
DIN 6923 flange nuts are used with flange bolts and weld studs in chassis brackets, body panels, battery trays and accessory mounts.
Automotive and EV fastenersMachinery and Equipment Brackets
Grade 8 / 10 flange nuts provide a broad bearing face for equipment brackets, covers, guards and frames where a separate washer is not preferred.
Industrial equipment fastenersLine-Side Fastener Kits
Flange nuts can be packed with matching flange bolts by size and coating for assembly lines and service kits.
Construction fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Cold forming of flange nut blanks35K / 10B21 material and lot verification
Tapping and flange geometry forming by DIN / ISO referenceThread gauge, proof load, across-flat and flange diameter inspection
Serrated or non-serrated flange form by drawingSerration, bearing face and nut height checks
Zinc plating for general corrosion protectionCoating thickness and thread fit inspection
Bulk, carton or line-side packagingCoC, dimensional and coating reports prepared on request
05
FAQ
Common Questions Before RFQ
What are hex flange nuts used for?
They are used where an integrated flange bearing face can replace a separate washer and improve assembly speed.
Are serrated flange nuts available?
Serrated and non-serrated forms can be reviewed according to the drawing or standard.
Which bolts match DIN 6923 flange nuts?
They are commonly paired with DIN 6921 / ISO 4162 flange bolts or other compatible metric bolts.
What grades are available?
Grade 8 and Grade 10 options are available in 35K / 10B21 material routes.
Can flange nuts be supplied with bolts?
Yes. Flange nuts can be supplied with matching flange bolts as kits or line-side packages.
Need DIN 6923 / ISO 4161 hex flange nuts?
Send size, grade, serrated or non-serrated form, coating, quantity and matching bolt requirement. We can quote M5-M16 zinc plated flange nuts for automotive and equipment assemblies.
Request a Quote
Get engineering support and pricing for this product — our team responds within 24 hours.
