DIN 186 Online Drawing Generator & Dimensions

T-head bolts with square neck bolts

Use this DIN 186 online drawing generator to review the T-head bolts with square neck bolts geometry and configure diameter, pitch, length and head dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 186, DIN186, DIN 186 drawing and DIN 186 dimensions refer to this page.

Standards
  • DIN 186
Back to T-boltsCompare DIN 186 equivalents and replacement →

Create Your DIN 186 Drawing Online

Use this DIN 186 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 186 or DIN186, this online drawing tool covers the same T-head bolts with square neck bolts standard reference.

Configure Your DIN 186 T-head bolts with square neck bolts Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 186

T-head bolts with square neck bolts

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 186

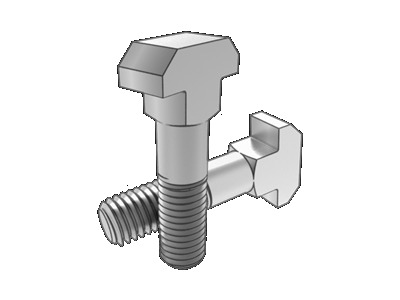

DIN 186 T-head bolts with square neck bolts
Product code
Product specification
M6x30
Product standard
DIN 186
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 186 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M6
P
1
L
28.95~31.05
k
4.1~4.9
s2
5.4~6.6
s1
15.1~16.9
r
0.5

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-186Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPds/maxds/mink/maxk/mins2/maxs2/mins1/maxs1/minr
M616.485.524.94.16.65.416.915.10.5
M81.258.587.425.95.18.757.2518.917.10.5
M101.510.589.427.56.510.759.2522200.5
M121.7512.711.38.757.7512.911.127251
M16216.715.311.49.616.915.131291
M202.520.8419.1613.912.1211937.2534.751
M24324.8423.1615.914.1252344.2541.751.6
M303.530.8429.162018312955.552.51.6
M3643735242237.2534.7567.564.52
M424.54341272543.2540.7581.578.52
M48549 47 31 29 49.25 46.75 89.75 86.25 2
Document No.: EF-DIN-186Revision: v1Issue date: 2026-09-24Page: 2 / 2
