DIN 787 Online Drawing Generator & Dimensions

T-Slot Bolts

Use this DIN 787 online drawing generator to review the T-Slot Bolts geometry and configure diameter, pitch, length and head dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 787, DIN787, DIN 787 drawing and DIN 787 dimensions refer to this page.

Standards
  • DIN 787
Back to T-boltsCompare DIN 787 equivalents and replacement →

Create Your DIN 787 Drawing Online

Use this DIN 787 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 787 or DIN787, this online drawing tool covers the same T-Slot Bolts standard reference.

Configure Your DIN 787 T-Slot Bolts Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 787

T-Slot Bolts

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 787

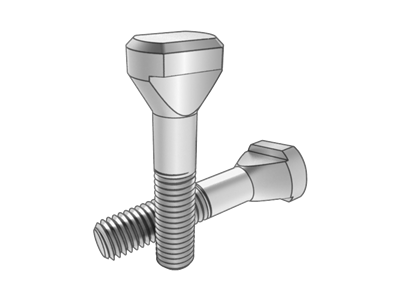

DIN 787 T-Slot Bolts
Product code
Product specification
M5x25
Product standard
DIN 787
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 787 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M5
P
0.8
L
23.95~26.05
b
18
a
4.5~4.7
s1
10
f
1
k
2.7~3
h
6.5
s
8.5~9

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-787Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPa/maxa/mins1fk/maxk/minhs/maxs/min
M50.84.74.510132.76.598.5
M615.75.5121.643.58109.5
M81.257.77.5161.665.5121312.5
M101.59.79.5201.665.5141514.5
M121.7511.711.4252.576.5161817.5
Document No.: EF-DIN-787Revision: v1Issue date: 2026-09-24Page: 2 / 2

Related catalog products

Catalog fasteners commonly specified with this drawing family. Confirm size, material and property class against your project drawing.

Request Custom DIN 787 Manufacturing

Send the configured drawing with material, grade, finish, quantity, tolerances and inspection requirements for engineering review and quotation.

Request a quote
