DIN 7982 Online Drawing Generator & Dimensions

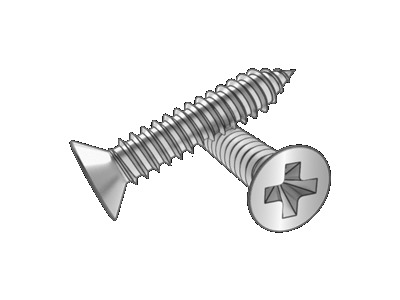

Cross-recessed countersunk head tapping screws

Use this DIN 7982 online drawing generator to review the Cross-recessed countersunk head tapping screws geometry and configure diameter, pitch, length, head and drive dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 7982, DIN7982, DIN 7982 drawing and DIN 7982 dimensions refer to this page.

Standards
  • DIN 7982
Back to Cross recessed self-tapping screwsCompare DIN 7982 equivalents and replacement →

Create Your DIN 7982 Drawing Online

Use this DIN 7982 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 7982 or DIN7982, this online drawing tool covers the same Cross-recessed countersunk head tapping screws standard reference.

Configure Your DIN 7982 Cross-recessed countersunk head tapping screws Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 7982

Cross-recessed countersunk head tapping screws

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 7982
DIN 7982 Cross-recessed countersunk head tapping screws
Product code
Product specification
ST3.5x13
Product standard
DIN 7982
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 7982 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
ST3.5
P
1.3
L
12.2~13.8
a
1.3
dk
6.44~6.8
k
2.1
No.
2
M
4.2
t
1.62~2.12

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-7982Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPa/maxdk/maxdk/minkNo.Mt/mint/max
ST2.20.80.84.341.312.51.021.32
ST2.91.11.15.55.21.7131.41.7
ST3.51.31.36.86.442.124.21.622.12
ST3.91.31.37.57.142.324.62.032.53
ST4.21.41.48.17.742.524.72.112.62
ST4.81.61.69.59.14325.12.593.1
ST5.51.81.810.810.373.436.82.953.53
ST6.31.81.812.411.973.837.13.333.91
Document No.: EF-DIN-7982Revision: v1Issue date: 2026-09-24Page: 2 / 2

Related catalog products

Catalog fasteners commonly specified with this drawing family. Confirm size, material and property class against your project drawing.
