ISO 7380 Online Drawing Generator & Dimensions

Hexagon socket button head screws

Use this ISO 7380 online drawing generator to review the Hexagon socket button head screws geometry and configure diameter, pitch, length, head and drive dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for ISO 7380, ISO7380, ISO 7380 drawing and ISO 7380 dimensions refer to this page.

Standards
  • ISO 7380
Back to Hex socket screwsCompare ISO 7380 equivalents and replacement →

Create Your ISO 7380 Drawing Online

Use this ISO 7380 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as ISO 7380 or ISO7380, this online drawing tool covers the same Hexagon socket button head screws standard reference.

Configure Your ISO 7380 Hexagon socket button head screws Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

ISO 7380

Hexagon socket button head screws

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
ISO 7380

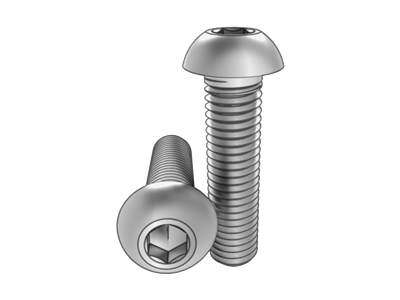

ISO 7380 Hexagon socket button head screws
Product code
Product specification
M6x16
Product standard
ISO 7380
Material / grade
Steel 45
Unit
mm
Mechanical properties
8.8 10.9 12.9
ISO 7380 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M6
P
1
L
15.65~16.35
da
6.8
dk
10.07~10.5
e
4.583
k
3~3.3
r
0.25
s
4.02~4.095
t
2.08

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
General technical requirements
ISO 8992
Thread
Tolerance
8.8 10.9:6g; 12.9:5g6g
Standard
ISO 261 ISO 965-2 ISO 965-3
Mechanical properties
性能Property class
8.8 10.9 12.9
Standard
ISO 898-1
Tolerance
Product grade
A
Standard
ISO 4759-1
Surface Treatment
未经Surface Treatment; electroplatingISO 4042; non-electrolytic zincISO 10683
Surface defects
12.9:ISO 6157-3; other classes:ISO 6157-1
Inspection & packaging
ISO 3269
Ref. wt / 1000 pcs (kg)
Document No.: EF-ISO-7380Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPda/maxdk/maxdk/mine/mink/maxk/minr/mins/maxs/mint/min
M30.53.65.75.42.3031.651.40.12.082.021.04
M40.74.77.67.242.8732.21.950.22.582.521.3
M50.85.79.59.143.4432.752.50.23.083.021.56
M616.810.510.074.5833.330.254.0954.022.08
M81.259.21413.575.7234.44.10.45.145.022.6
M101.511.217.517.076.8635.55.20.46.146.023.12
M121.7513.72120.489.1496.66.240.68.1758.0254.16
M16217.72827.4811.4298.88.440.610.17510.0255.2
