Create Your DIN 7979 Drawing Online

Use this DIN 7979 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 7979 or DIN7979, this online drawing tool covers the same Parallel Pins (Internal) standard reference.

Configure Your DIN 7979 Parallel Pins (Internal) Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

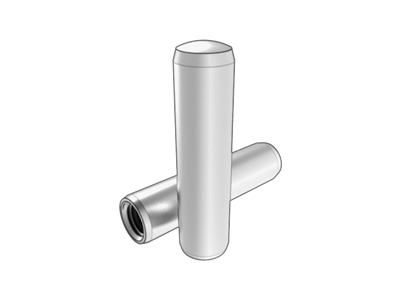

DIN 7979 Parallel Pins (Internal)

Product code

Product specification

Φ6x16

Product standard

DIN 7979

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

6.004~6.012

15.5~16.5

0.8

2.1

0.7

max = maximum; min = minimum

Material

Material type

Steel

Grade

Thread

Tolerance

Standard

Mechanical properties

Property class

45H

Standard

Tolerance

Product grade

Standard

Surface defects

Surface Treatment

Inspection & packaging

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	d/max	d/min	c1	c	d1	t	P1
Φ6	6.012	6.004	0.8	2.1	M4	6	0.7
Φ8	8.015	8.006	1	2.6	M5	8	0.8
Φ10	10.015	10.006	1.2	3	M6	10	1
Φ12	12.018	12.007	1.6	3.8	M6	10	1
Φ14	14.018	14.007	1.8	4	M8	12	1.25
Φ16	16.018	16.007	2	4.7	M8	12	1.25
Φ20	20.021	20.008	2.5	6	M10	16	1.5
Φ25	25.021	25.008	3	6	M16	24	2
Φ30	30.021	30.008	4	7	M20	30	2.5
Φ40	40.025	40.009	5	8	M20	30	2.5
Φ50	50.025	50.009	6.3	10	M24	36	3
Φ60	60.03	60.011	8	12	M30	40	3.5
Φ70	70.03	70.011	10	14	M36	54	4
Φ80	80.03	80.011	12	16	M42	63	5

Product parameters

Φ6x16

Dimension	Parameter (mm)
d
L
d max
d min
L max
L min
c1
c
d1
t
P1

Technical conditions

Material	Material type
Material	Grade
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
