Create Your DIN 7985 Drawing Online

Use this DIN 7985 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 7985 or DIN7985, this online drawing tool covers the same Cross-recessed pan head screws standard reference.

Configure Custom DIN 7985 Screws

Define head profile, recess type and size, thread, length, material, finish and tolerances; deviations follow the approved drawing.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

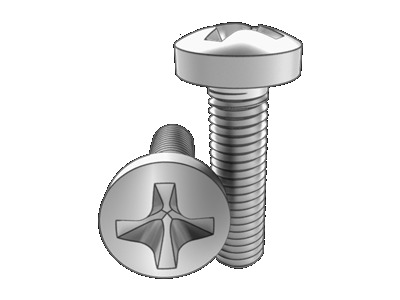

DIN 7985 Cross-recessed pan head screws

Product code

Product specification

M6x12

Product standard

DIN 7985

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

11.65~12.35

6.8

11.57~12

0.25

No.

6.8

3.03~3.53

4.45~4.75

max = maximum; min = minimum

Material

Material type

Steel

Grade

Thread

Tolerance

Standard

Mechanical properties

Property class

45H

Standard

Tolerance

Product grade

Standard

Surface defects

Surface Treatment

Inspection & packaging

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	da/max	dk/max	dk/min	r/max	No.	M	t/min	t/max	h/max	h/min	k
M1.6	0.35	2.1	3.2	2.9	0.1	0	1.8	0.72	1.02	1.42	1.18	0.8
M2	0.4	2.6	4	3.7	0.1	1	2.5	1.1	1.4	1.72	1.48	1.1
M2.5	0.45	3.1	5	4.7	0.1	1	2.7	1.3	1.6	2.12	1.88	1.3
M3	0.5	3.6	6	5.7	0.1	1	3.1	1.7	2	2.52	2.28	1.6
M3.5	0.6	4.1	7	6.64	0.2	2	4.2	1.74	2.24	2.82	2.58	1.9
M4	0.7	4.7	8	7.64	0.2	2	4.6	2.04	2.54	3.25	2.95	2
M5	0.8	5.7	10	9.64	0.2	2	5.3	2.77	3.27	3.95	3.65	2.5
M6	1	6.8	12	11.57	0.25	3	6.8	3.03	3.53	4.75	4.45	3
M8	1.25	9.2	16	15.57	0.4	4	9	4.18	4.68	6.15	5.85	3.7
M10	1.5	11.2	20	19.48	0.4	4	10.2	5.38	5.88	7.68	7.32	4.8

Product parameters

M6x12

Dimension	Parameter (mm)
d
P
L
L max
L min
da max
dk max
dk min
r max
No.
M
t max
t min
h max
h min
k

Technical conditions

Material	Material type
Material	Grade
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
