| Standard | DIN 84 ref · ISO 7045 ref / ISO 14583 ref · OEM drawing |
|---|---|
| Material | Aluminum 6061 / 7075 / 2024 |
| Strength Grade | Drawing-based |
| Size Range | M1-M3, custom miniature sizes by drawing |
| Surface Treatment | Natural / Clear anodized / Black anodized / Color anodized |
Product Description
Custom Aluminum Micro Screws are miniature drawing-based fasteners for compact assemblies where weight reduction, non-magnetic behavior, clean appearance or anodized corrosion protection matters. They are used when a standard steel screw is heavier than necessary or when the assembly requires an aluminum-compatible fastener.
Common material choices include 6061 aluminum for general precision hardware, 7075 aluminum where higher aluminum strength is required and 2024 aluminum when the design specifies an aerospace-style aluminum alloy. Final grade selection should confirm strength, corrosion exposure, anodizing requirement and mating material.
Sizes are typically M1, M1.2, M1.4, M1.6, M2, M2.5 and M3, with miniature pan head, countersunk head, button head, socket head, Torx / six-lobe or custom drive forms reviewed by drawing. Aluminum screws are not direct substitutes for high-strength steel fasteners unless the joint design permits the lower strength and installation torque.
| Product type | Custom aluminum micro screws / miniature aluminum machine screws |
|---|---|
| Standards | OEM drawing, DIN 84 reference, ISO 7045 reference, ISO 14583 reference or project standard |
| Materials | 6061 aluminum, 7075 aluminum, 2024 aluminum by request |
| Size range | M1, M1.2, M1.4, M1.6, M2, M2.5, M3 and drawing-based miniature sizes |
| Head styles | Pan head, countersunk head, button head, socket head and custom miniature head forms |
| Drive styles | Phillips, slot, hex socket, Torx / six-lobe or custom drive |
| Surface finish | Natural, clear anodized, black anodized, hard anodized or color anodized |
| Supply form | Custom screws, screw-and-washer sets, small precision batches or project production lots |
| Documentation | Material confirmation, CoC, dimensional report and surface finish check on request |

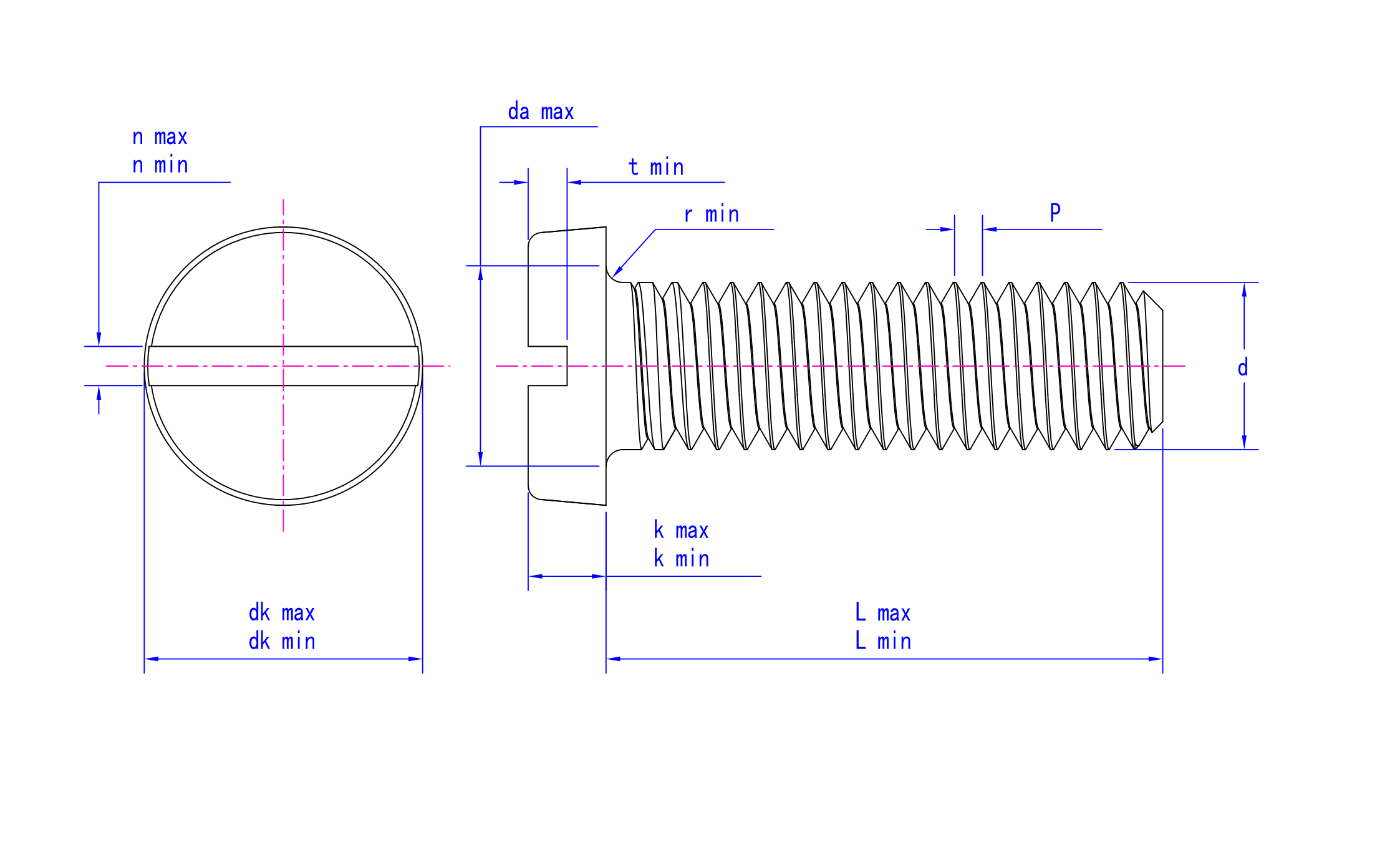

| Parameter | M1 | M1.2 | M1.4 | M1.6 | M1.8 | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.25 | 0.25 | 0.3 | 0.35 | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
| dk/max | 2 | 2.3 | 2.6 | 3 | 3.4 | 3.8 | 4.5 | 5.5 | 6 | 7 | 8.5 | 10 | 13 | 16 |
| dk/min | 1.86 | 2.16 | 2.46 | 2.86 | 3.22 | 3.62 | 4.32 | 5.32 | 5.82 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 |
| da/max | 1.4 | 1.6 | 1.8 | 2 | 2.2 | 2.6 | 3.1 | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 |
| k/max | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.3 | 1.6 | 2 | 2.4 | 2.6 | 3.3 | 3.9 | 5 | 6 |
| k/min | 0.56 | 0.66 | 0.76 | 0.86 | 1.06 | 1.16 | 1.46 | 1.86 | 2.26 | 2.46 | 3.12 | 3.6 | 4.7 | 5.7 |
| n/max | 0.45 | 0.5 | 0.5 | 0.6 | 0.6 | 0.7 | 0.8 | 1 | 1.2 | 1.51 | 1.51 | 1.91 | 2.31 | 2.81 |
| n/min | 0.31 | 0.36 | 0.36 | 0.46 | 0.46 | 0.56 | 0.66 | 0.86 | 1.06 | 1.26 | 1.26 | 1.66 | 2.06 | 2.56 |
| r/min | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.44 | 0.4 |
| t/min | 0.25 | 0.3 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.85 | 1 | 1.1 | 1.3 | 1.6 | 2 | 2.4 |
Engineering references
Selection
Aluminum micro screws are used in compact housings, instrument panels and precision modules where small size, low mass and clean anodized appearance are required.
Screw productsAluminum micro screws may support non-structural aerospace interior, trim and equipment-cover assemblies when the joint is designed for lightweight aluminum hardware.
Aerospace fastenersWhen aluminum panels, plastic housings or lightweight brackets are used, screw material, coating and installation torque should be reviewed to avoid stripping, galling or galvanic issues.
Industrial equipment fastenersAssembly
Manufacturing
FAQ
Send the drawing or size, aluminum grade, head style, drive, thread, length, finish, tolerance, quantity and target application.
Yes, 7075 aluminum can be reviewed where higher aluminum strength is required. Final feasibility depends on size, head geometry, thread form and finish.
No. Aluminum screws are selected for low weight, appearance, non-magnetic behavior or material compatibility, not as direct replacements for high-strength steel screws.
Yes. Clear, black, hard and selected color anodized finishes can be reviewed by grade, size and cosmetic requirement.
Yes. Screw-and-washer sets or small bagged kits can be supplied when washer size, material and packing method are specified.
Send your drawing, material grade, size, head style, drive, finish and quantity. We can review M1-M3 miniature aluminum screws in 6061, 7075 or 2024 with anodized finish options.
