DIN 6922 Online Drawing Generator & Dimensions

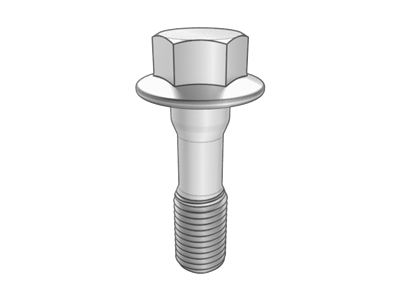

Hexagon bolts with flange, reduced shank

Use this DIN 6922 online drawing generator to review the Hexagon bolts with flange, reduced shank geometry and configure diameter, pitch, length and head dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 6922, DIN6922, DIN 6922 drawing and DIN 6922 dimensions refer to this page.

Standards
  • DIN 6922
Back to Hex head flange boltsCompare DIN 6922 equivalents and replacement →

Create Your DIN 6922 Drawing Online

Use this DIN 6922 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 6922 or DIN6922, this online drawing tool covers the same Hexagon bolts with flange, reduced shank standard reference.

Configure Your DIN 6922 Hexagon bolts with flange, reduced shank Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 6922

Hexagon bolts with flange, reduced shank

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 6922
DIN 6922 Hexagon bolts with flange, reduced shank
Product code
Product specification
M5x30
Product standard
DIN 6922
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 6922 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M5
P
0.8
L
29.58~30.42
b
16
da
6.2
dc
11.8
ds
4.82~5
e
8.71
Lf
1.4
k
5.4
r
0.1
s
7.78~8

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-6922Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPda/maxdc/maxds/maxds/mine/minLf/maxk/maxr/mins/maxs/min
M50.86.211.854.828.711.45.40.187.78
M617.414.265.8210.9526.60.1109.78
M81|1.25101887.7814.2628.10.151312.73
M101|1.25|1.512.622.3109.7816.529.20.21514.73
M121.25|1.5|1.7515.226.61211.7317.62311.50.251615.73
M141.5|217.730.51413.7319.86312.80.31817.73
M161.5|220.7351615.7323.15314.40.352120.67
M201.5|2.525.7432019.6729.87417.10.42726.67
Document No.: EF-DIN-6922Revision: v1Issue date: 2026-09-24Page: 2 / 2
