Hex Nuts
| Standard | DIN 934 · ISO 4032 · SAE J995 |
|---|---|
| Material | 10B21 / 35K |
| Strength Grade | Grade 8 / 10 / 12 |
| Size Range | M3-M30 |
| Surface Treatment | Zinc Plated |
01
Product Description
Product Description & Key Specifications

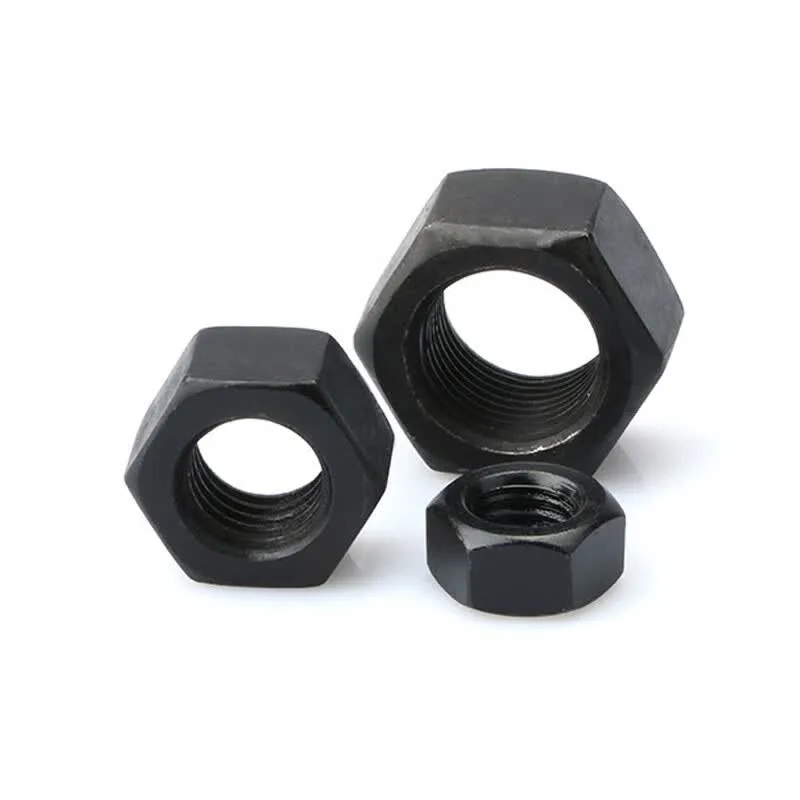

Hex nuts are standard internally threaded fasteners used with bolts, threaded rods and studs in construction, machinery, equipment, automotive and general industrial assemblies. This range covers DIN 934, ISO 4032 and SAE J995 references in 10B21 / 35K with Grade 8 / 10 / 12 options.
Nut selection should confirm standard, thread size, strength grade, proof load, coating, mating bolt grade and whether the assembly requires a standard nut, flange nut, lock nut or heavy structural nut. General hex nuts should not be substituted for structural or pressure bolting nuts when those standards are specified.
Zinc plated finish is common for indoor and mild-service assemblies. M3-M30 sizes can be supplied alone or kitted with hex bolts, threaded rods, flat washers and spring washers for project procurement.
| Product type | Hex nuts / metric nuts |
|---|---|
| Standards | DIN 934 / ISO 4032 / SAE J995 |
| Material | 10B21 / 35K |
| Strength grade | Grade 8 / 10 / 12 |
| Size range | M3-M30 |
| Common models | M3, M4, M5, M6, M8, M10, M12, M16, M20, M24, M30 |
| Thread type | Metric coarse thread or SAE thread by specification |
| Surface finish | Zinc plated |
| Matched hardware | Hex bolts, threaded rods, flat washers and spring washers |
| Documentation | MTC, CoC, proof load, dimensional and coating report on request |
Dimensions & SpecificationsDIN 934 / ISO 4032
Technical Drawing
Dimensional Table
| Parameter | M1 | M1.2 | M1.4 | M1.6 | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.25 | 0.25 | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1|1.25 | 1|1.25|1.5 | 1.25|1.5|1.75 | 1.5|2 | 1.5|2 |
| e/min | 2.71 | 3.28 | 3.28 | 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 |
| k/max | 0.8 | 1 | 1.2 | 1.3 | 1.6 | 2 | 2.4 | 2.8 | 3.2 | 4 | 5 | 5.5 | 6.5 | 8 | 10 | 11 | 13 |
| k/min | 0.55 | 0.75 | 0.95 | 1.05 | 1.35 | 1.75 | 2.15 | 2.55 | 2.9 | 3.7 | 4.7 | 5.2 | 6.14 | 7.64 | 9.64 | 10.3 | 12.3 |
| s/max | 2.5 | 3 | 3 | 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 |
| s/min | 2.4 | 2.9 | 2.9 | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 |
Engineering references
Technical resources
Review the applicable dimensions, drawing and standard relationship before confirming the ordered specification.02
Selection
Selection Advantages by Application
Construction and Equipment Assembly
M8-M24 zinc plated hex nuts are widely used with bolts and threaded rods in construction brackets, equipment frames, supports and maintenance hardware.
Construction fastenersMachinery and General Industrial Use
Grade 8 / 10 / 12 nuts support machinery covers, bases, guards and general fastening where the mating bolt grade is confirmed.
Industrial equipment fastenersBolt-Nut-Washer Project Kits
Hex nuts can be supplied with matching hex bolts, flat washers and spring washers to reduce mismatch risk in project procurement.
Renewable energy fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Cold forming or machining of hex nut blanks10B21 / 35K material and lot verification
Tapping and chamfering to DIN / ISO / SAE referenceThread gauge, across-flat, height and proof load inspection
Heat treatment for Grade 8 / 10 / 12 optionsHardness and mechanical property review by lot
Zinc plating with thread fit controlCoating thickness and visual inspection on request
Bulk, carton or kit packaging with bolts and washersCoC, dimensional and coating reports prepared on request
05
FAQ
Common Questions Before RFQ
What standards are available for hex nuts?
Common references include DIN 934, ISO 4032 and SAE J995, depending on metric or project requirements.
Which nut grade should I choose?
The nut grade should match the bolt grade and joint requirement. Grade 8 / 10 / 12 options are available.
Can zinc plated nuts be used outdoors?
Zinc plating is mainly for indoor or mild environments. Outdoor or severe corrosion applications may need another coating or material.
Are these structural nuts?
They are general hex nuts. Structural projects may require ASTM A563, EN 14399 or other dedicated nut standards.
Can nuts be supplied with bolts and washers?
Yes. Hex nuts can be supplied alone or as bolt-nut-washer sets.
Need DIN 934 / ISO 4032 hex nuts?
Send size, grade, standard, finish, quantity and matching bolt/washer requirements. We can quote M3-M30 zinc plated hex nuts for project kits and industrial assemblies.
