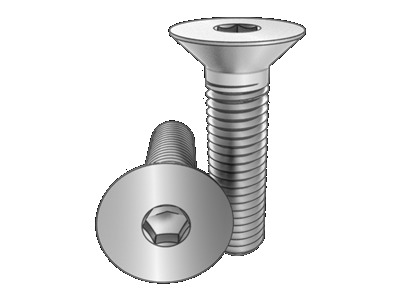

DIN 7991 Hex Socket Sunk Screws

Product code

Product specification

M6x16

Product standard

DIN 7991

Material / grade

Steel 45

Unit

Mechanical properties

8.8

Dimension

Parameter (mm)

Dimension

Parameter (mm)

15.65~16.35

11.57~12

4.58

3.3

4.02~4.12

2.25~2.5

max = maximum; min = minimum

Material

Material type

Steel

Grade

General technical requirements

DIN 267-1

Thread

Tolerance

Standard

DIN 13-12 DIN 13-15

Mechanical properties

Property class

8.8

Standard

ISO 898-1

Tolerance

Product grade

Standard

ISO 4759-1

Surface Treatment

black (heat or chemical) electroplatingDIN 267-9; ，custom

Surface roughness

DIN 267-2

Surface defects

DIN 267-19

Inspection & packaging

DIN 267-5

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	dk/max	dk/min	e/min	k/max	s/min	s/max	t/max	t/min
M3	0.5	6	5.7	2.3	1.7	2.02	2.1	1.2	0.95
M4	0.7	8	7.64	2.87	2.3	2.52	2.6	1.8	1.55
M5	0.8	10	9.64	3.44	2.8	3.02	3.1	2.3	2.05
M6	1	12	11.57	4.58	3.3	4.02	4.12	2.5	2.25
M8	1.25	16	15.57	5.72	4.4	5.02	5.14	3.5	3.2
M10	1.5	20	19.48	6.86	5.5	6.02	6.14	4.4	4.1
M12	1.75	24	23.48	9.15	6.5	8.025	8.175	4.6	4.3
M14	2	27	26.48	11.43	7	10.025	10.175	4.8	4.5
M16	2	30	29.48	11.43	7.5	10.025	10.175	5.3	5
M18	2.5	33	32.38	13.72	8	12.032	12.212	5.5	5.2
M20	2.5	36	35.38	13.72	8.5	12.032	12.212	5.9	5.6
M22	2.5	36	35.38	16	13.1	14.032	14.212	8.8	8.44
M24	3	39	38.38	16	14	14.032	14.212	10.3	9.87

Product parameters

M6x16

Dimension	Parameter (mm)
d
P
L
L max
L min
dk max
dk min
e min
k max
s max
s min
t max
t min

Technical conditions

Material	Material type
Material	Grade
General technical requirements	DIN 267-1
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface Treatment	black (heat or chemical) electroplatingDIN 267-9; ，custom
Surface roughness
Surface defects
Inspection & packaging
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
