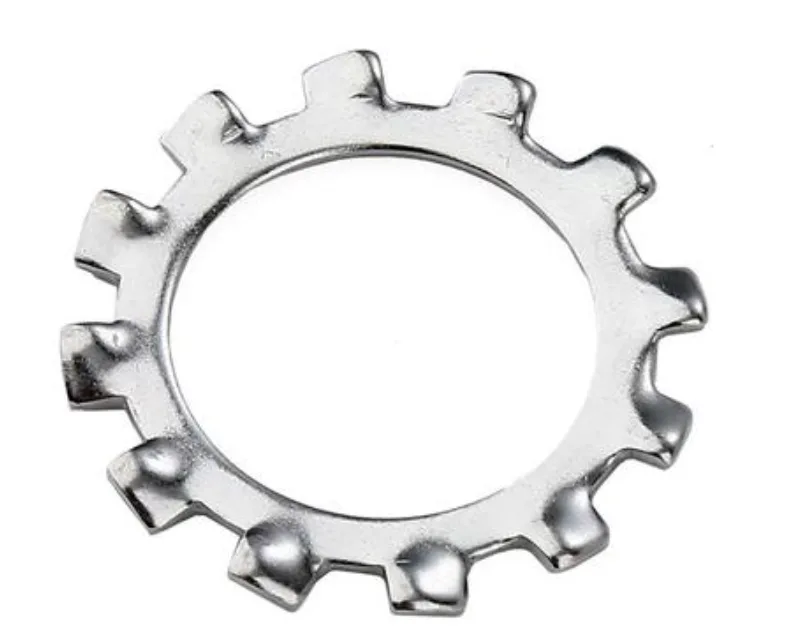

Stainless Toothed Lock Washers (DIN 6797) - SS304 / SS316 - toothed locking profile around the washer bore; primary product view

Stainless Toothed Lock Washers

StandardDIN 6797
MaterialSS304 / SS316
Strength Grade—
Size RangeM3-M16
Surface TreatmentPassivation
Quote
01

Product Description

Product Description & Key Specifications

DIN 6797 stainless toothed lock washers are supplied in SS304 / SS316 for corrosion-resistant screw and bolt assemblies where bite-locking, electrical bonding support or improved resistance to rotation is specified by drawing. Common supply range is M3-M16 with passivated finish.

Toothed lock washers, also called stainless star washers in some RFQs, use teeth to bite into the mating surface. This can support locking or bonding, but it may mark the surface and should be selected carefully for stainless, coated or hygienic equipment. Internal or external tooth form should be confirmed by drawing.

SS304 / A2 is suitable for general equipment assemblies, while SS316 / A4 is preferred for marine, coastal, washdown and chloride-exposed service. For critical vibration, preload-controlled or safety joints, confirm whether a toothed washer is approved by the project standard.

Product typeStainless toothed lock washers / stainless star washers
StandardsDIN 6797 reference
MaterialSS304 / SS316
Strength gradeProject/OEM requirement, selected by washer material and form
Size rangeM3-M16, matched to screw or bolt diameter
Common modelsM3, M4, M5, M6, M8, M10, M12 stainless toothed lock washers
Tooth formInternal or external tooth form confirmed by drawing
Surface finishPassivated stainless surface
Supply formWashers only or matched stainless screw / bolt kits
DocumentationCoC, material certificate and dimensional report on request
Dimensions & SpecificationsDIN 6797

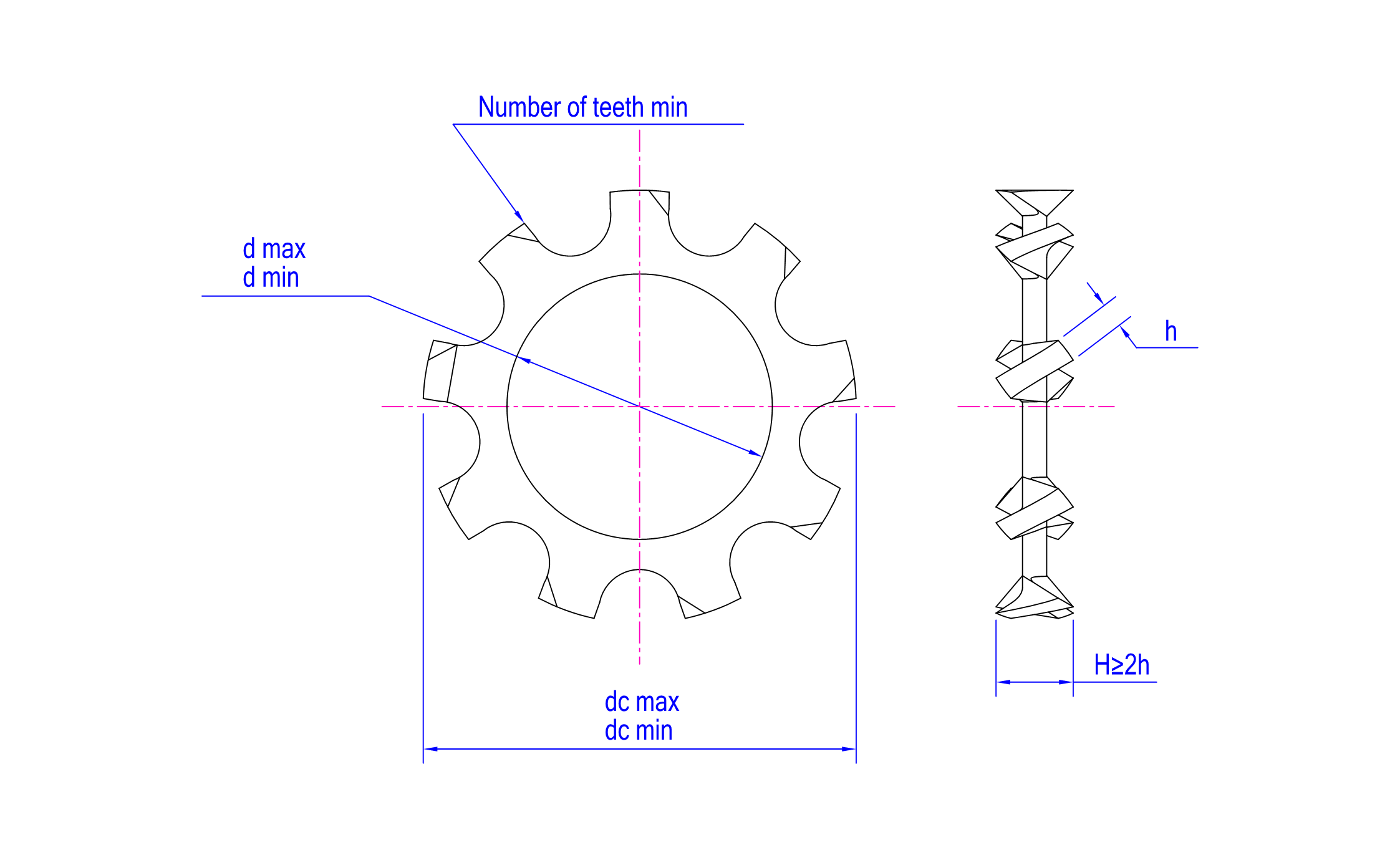

Technical Drawing

DIN 6797 A technical drawing

Dimensional Table

ParameterΦ1.6Φ2Φ2.5Φ3Φ3.5Φ4Φ5Φ6Φ7Φ8Φ10Φ12Φ14Φ16Φ18Φ20Φ22Φ24Φ27Φ30
d/min1.72.22.73.23.74.35.36.47.48.410.5131517192123252831
d/max1.842.342.843.383.884.485.486.627.628.6210.7713.2715.2717.2719.3321.3323.3325.3328.3331.39
dc/max3.64.55.5678101112.5151820.52426303336384448
dc/min3.34.25.25.76.647.649.6410.5712.0714.5717.5719.9823.4825.4829.4832.3835.3837.3843.3847.38
h0.30.30.40.40.50.50.60.70.80.80.9111.21.41.41.51.51.61.6
Number of teeth/min66666888889101012121214141414

Engineering references

Technical resources

Review the applicable dimensions, drawing and standard relationship before confirming the ordered specification.
Dimensions and drawingCustom & Non-Standard DIN 6797 Toothed lock washers, external teethOpen drawing →
