DIN 605 Online Drawing Generator & Dimensions

Countersunk Square Neck

Use this DIN 605 online drawing generator to review the Countersunk Square Neck geometry and configure diameter, pitch, length and head dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 605, DIN605, DIN 605 drawing and DIN 605 dimensions refer to this page.

Standards
  • DIN 605
Back to Round head boltsCompare DIN 605 equivalents and replacement →

Create Your DIN 605 Drawing Online

Use this DIN 605 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 605 or DIN605, this online drawing tool covers the same Countersunk Square Neck standard reference.

Configure Your DIN 605 Countersunk Square Neck Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 605

Countersunk Square Neck

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 605

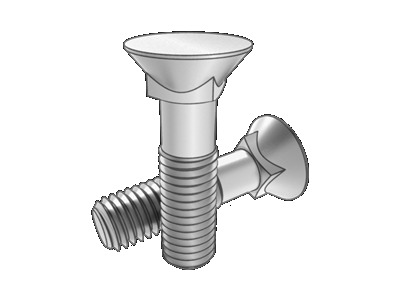

DIN 605 Countersunk Square Neck
Product code
Product specification
M6x30
Product standard
DIN 605
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 605 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M6
P
1
L
28.95~31.05
dk
15.45~16.55
k
6.55~7.45
s
5.52~6.48

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-605Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPdk/maxdk/minds/maxds/mink/maxk/mins/maxs/min
M6116.5515.4565.527.456.556.485.52
M81.2520.6519.3587.429.458.558.587.42
M101.524.65 23.35 10 9.42 11.55 9.45 10.58 9.42
Document No.: EF-DIN-605Revision: v1Issue date: 2026-09-24Page: 2 / 2
