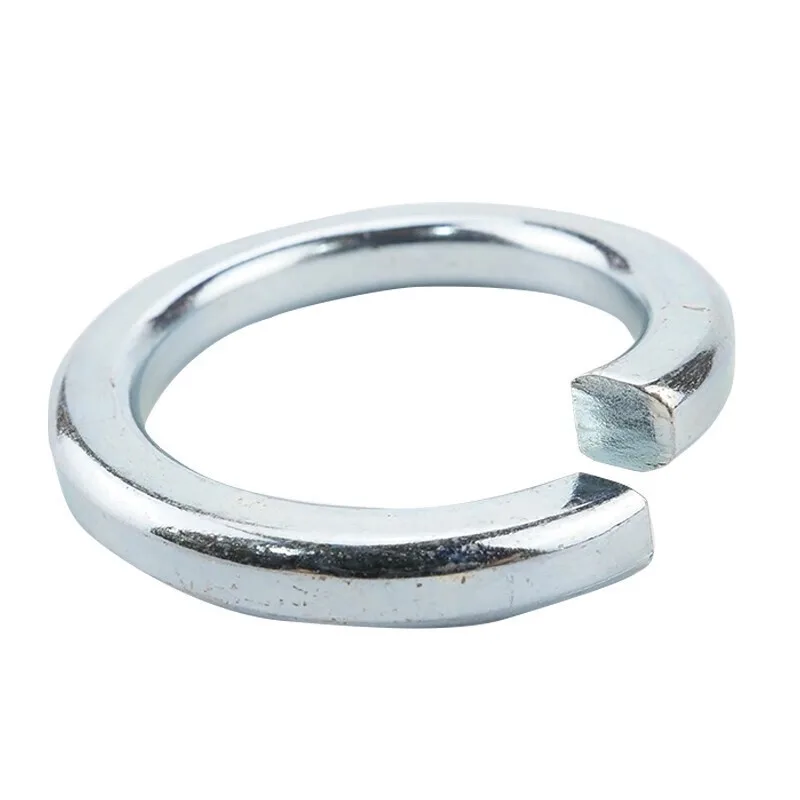

Spring Washers
| Standard | DIN 127 · ISO 7980 |
|---|---|
| Material | 65Mn Steel |
| Strength Grade | — |
| Size Range | M3-M24 |
| Surface Treatment | Zinc Plated |
01
Product Description
Product Description & Key Specifications
Spring washers, commonly called split lock washers, are used in general bolted assemblies where a drawing or bill of material specifies a simple elastic washer under the nut or bolt head. This range is supplied in 65Mn steel to DIN 127 / ISO 7980 with zinc plated finish.
Spring washers are different from wedge-lock washers and disc springs. They are not a universal solution for critical vibration or preload-controlled joints, but they remain common in maintenance hardware, panel assemblies, light machinery and railway accessory applications where the design specifically calls for DIN 127 / ISO 7980.
M3-M24 sizes are available in zinc plated finish for general corrosion protection. RFQs should confirm standard, size, washer form, material, finish, quantity and whether matching bolts, nuts and flat washers are required as a kit.
| Product type | Spring washers / split lock washers |
|---|---|
| Standards | DIN 127 / ISO 7980 |
| Material | 65Mn steel |
| Strength grade | Spring steel washer |
| Size range | M3-M24 |
| Common models | M3, M4, M5, M6, M8, M10, M12, M16, M20, M24 |
| Washer form | Split helical spring washer by standard |
| Surface finish | Zinc plated |
| Matched hardware | Hex bolts, hex nuts, flat washers and threaded rods |
| Documentation | CoC, material certificate and dimensional report on request |
Dimensions & SpecificationsDIN 127 / ISO 7980

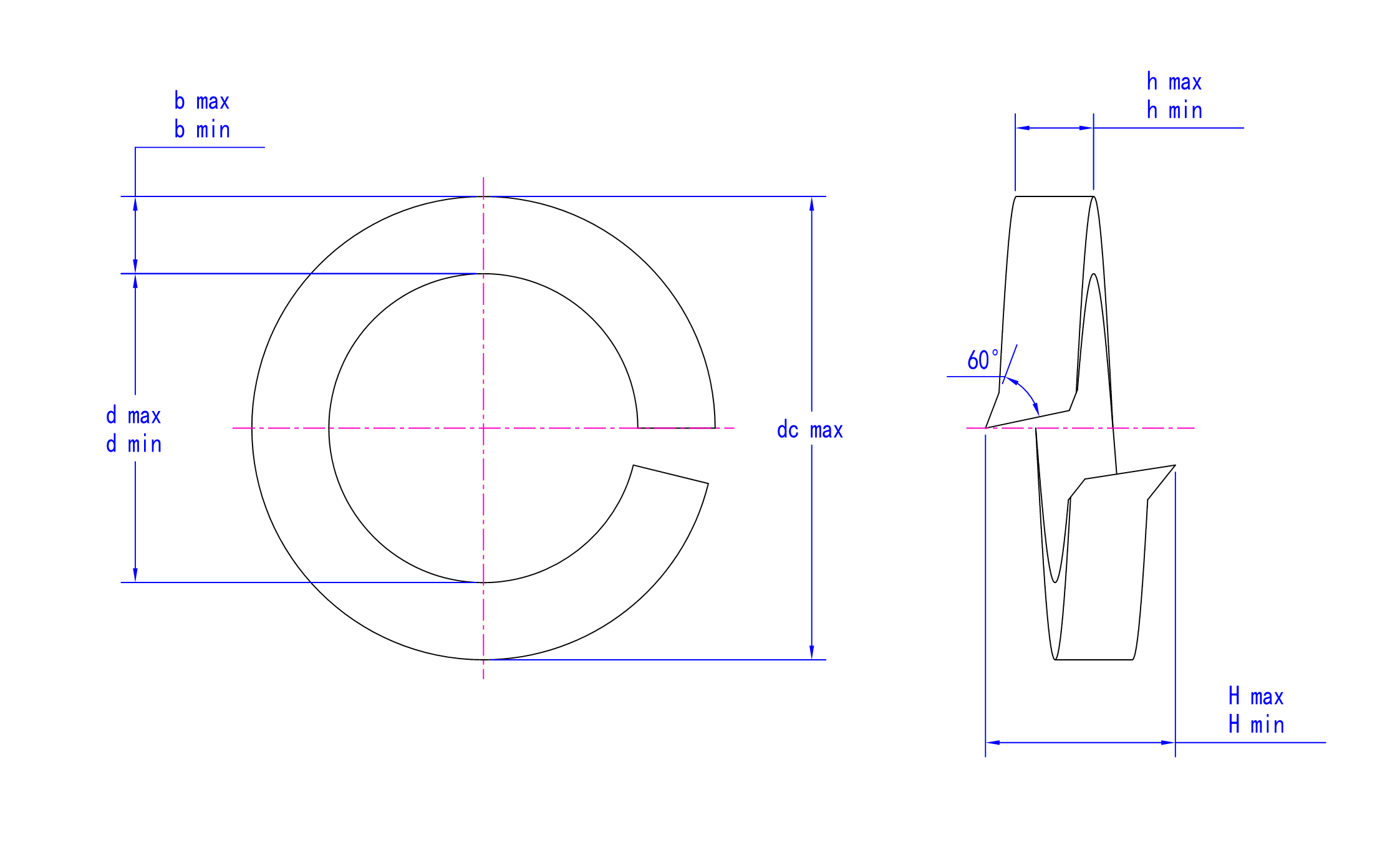

Technical Drawing
Dimensional Table
| Parameter | Φ3 | Φ3.5 | Φ4 | Φ5 | Φ6 | Φ7 | Φ8 | Φ10 | Φ12 | Φ14 | Φ16 | Φ18 | Φ20 | Φ22 | Φ24 | Φ27 | Φ30 | Φ36 | Φ39 | Φ42 | Φ45 | Φ48 | Φ52 | Φ56 | Φ60 | Φ64 | Φ68 | Φ72 | Φ80 | Φ90 | Φ100 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| d/min | 3.1 | 3.6 | 4.1 | 5.1 | 6.1 | 7.1 | 8.1 | 10.2 | 12.2 | 14.2 | 16.2 | 18.2 | 20.2 | 22.5 | 24.5 | 27.5 | 30.5 | 36.5 | 39.5 | 42.5 | 45.5 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 81 | 91 | 101 |
| d/max | 3.4 | 3.9 | 4.4 | 5.4 | 6.5 | 7.5 | 8.5 | 10.7 | 12.7 | 14.7 | 17 | 19 | 21.2 | 23.5 | 25.5 | 28.5 | 31.7 | 37.7 | 40.7 | 43.7 | 46.7 | 50.5 | 54.5 | 58.5 | 62.5 | 66.5 | 70.5 | 74.5 | 82.5 | 92.5 | 102.5 |
| b/max | 1.4 | 1.4 | 1.6 | 1.9 | 2.65 | 2.65 | 3.15 | 3.7 | 4.2 | 4.7 | 5.2 | 5.2 | 6.2 | 6.2 | 7.25 | 7.25 | 8.25 | 10.25 | 10.25 | 12.25 | 12.25 | 12.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 |
| b/min | 1.2 | 1.2 | 1.4 | 1.7 | 2.35 | 2.35 | 2.85 | 3.3 | 3.8 | 4.3 | 4.8 | 4.8 | 5.8 | 5.8 | 6.75 | 6.75 | 7.75 | 9.75 | 9.75 | 11.75 | 11.75 | 11.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 |
| h/max | 0.9 | 0.9 | 1 | 1.3 | 1.7 | 1.7 | 2.1 | 2.35 | 2.65 | 3.15 | 3.7 | 3.7 | 4.2 | 4.2 | 5.2 | 5.2 | 6.2 | 6.2 | 6.2 | 7.25 | 7.25 | 7.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 |
| h/min | 0.7 | 0.7 | 0.8 | 1.1 | 1.5 | 1.5 | 1.9 | 2.05 | 2.35 | 2.85 | 3.3 | 3.3 | 3.8 | 3.8 | 4.8 | 4.8 | 5.8 | 5.8 | 5.8 | 6.75 | 6.75 | 6.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 |
| H/min | 1.9 | 1.9 | 2.1 | 2.7 | 3.6 | 3.6 | 4.6 | 5 | 5.8 | 6.8 | 7.8 | 7.8 | 8.8 | 8.8 | 11 | 11 | 13.6 | 13.6 | 13.6 | 15.6 | 15.6 | 15.6 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 |
| H/max | 2.1 | 2.2 | 2.5 | 3.2 | 4.2 | 4.2 | 5.4 | 5.9 | 6.8 | 8 | 9.2 | 9.2 | 10.4 | 10.4 | 13 | 13 | 16.1 | 16.1 | 16.1 | 18.4 | 18.4 | 18.4 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 |
| dc/max | 6.2 | 6.7 | 7.6 | 9.2 | 11.8 | 12.8 | 14.8 | 18.1 | 21.1 | 24.1 | 27.4 | 29.4 | 33.6 | 35.9 | 40 | 43 | 48.2 | 58.2 | 61.2 | 68.2 | 71.2 | 75 | 83 | 87 | 91 | 95 | 99 | 103 | 111 | 121 | 131 |
02
Selection
Selection Advantages by Application
Railway Accessories and Panels
Zinc plated spring washers are used in selected railway accessories, panels and maintenance hardware where DIN 127 / ISO 7980 washers are specified.
Railway fastenersGeneral Machinery and Maintenance
M6-M16 spring washers are common in light equipment, guards, covers and repair kits where a standard split washer is required by the BOM.
Industrial equipment fastenersConstruction Hardware Kits
Spring washers can be supplied with hex bolts, nuts and flat washers for general construction hardware packages.
Construction fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Coiling, cutting and forming of 65Mn spring washer blanksMaterial and wire/strip dimension verification
Heat treatment for spring washer behaviorHardness and dimensional inspection by lot
DIN 127 / ISO 7980 standard size productionID, OD, thickness, gap and twist inspection
Zinc plating for general corrosion protectionCoating thickness and visual inspection on request
Bulk, bagged or kit packagingCoC and dimensional report prepared when specified
05
FAQ
Common Questions Before RFQ
What are spring washers used for?
They are used in general assemblies where a split lock washer is specified under a nut or bolt head.
Are spring washers suitable for critical vibration joints?
For critical vibration or preload-controlled joints, confirm whether wedge-lock washers, prevailing torque nuts or another locking method is required.
What material is used?
This range uses 65Mn spring steel with zinc plated finish.
What sizes are available?
Common sizes range from M3 to M24.
Can spring washers be supplied with bolts and nuts?
Yes. They can be supplied alone or in bolt-nut-washer kits.
Need DIN 127 / ISO 7980 spring washers?
Send size, standard, quantity, finish and matching bolt/nut requirements. We can quote zinc plated 65Mn spring washers alone or in fastener kits.
