DIN 607 Online Drawing Generator & Dimensions

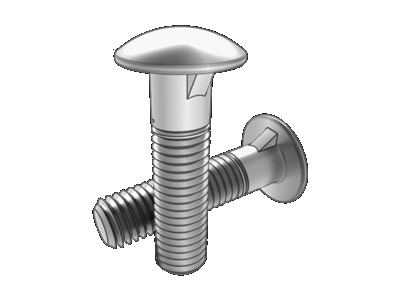

Cup head nib bolts with large head

Use this DIN 607 online drawing generator to review the Cup head nib bolts with large head geometry and configure diameter, pitch, length and head dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 607, DIN607, DIN 607 drawing and DIN 607 dimensions refer to this page.

Standards
  • DIN 607
Back to Round head boltsCompare DIN 607 equivalents and replacement →

Create Your DIN 607 Drawing Online

Use this DIN 607 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 607 or DIN607, this online drawing tool covers the same Cup head nib bolts with large head standard reference.

Configure Your DIN 607 Cup head nib bolts with large head Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 607

Cup head nib bolts with large head

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 607
DIN 607 Cup head nib bolts with large head
Product code
Product specification
M8x16
Product standard
DIN 607
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 607 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M8
P
1.25
L
15.1~16.9
dk
15.45~16.55
s
2.6~3
k1
2.3
k
5.62 ~6.38
r
0.5

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-607Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPdk/maxdk/minds/maxds/mins/maxs/mink1/mink/maxk/minr/max
M81.2516.5515.4587.4232.62.36.385.62 0.5
M101.519.6518.35109.423.22.722.77.456.55 0.5
M121.7524.6523.351211.33.63.123.29.658.75 1
M16230.6529.351615.34.23.723.511.7510.65 1
Document No.: EF-DIN-607Revision: v1Issue date: 2026-09-24Page: 2 / 2
