Create Your DIN 915 Drawing Online

Use this DIN 915 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 915 or DIN915, this online drawing tool covers the same Hex Socket Set (Dog) standard reference.

Customize DIN 915 Dog-Point Set Screws

DIN 915 / ISO 4028 is the reference template, not a limit on the customer specification. Change the thread, length, socket, dog-point diameter or length, transition, hardness, coating and tolerances as required. The cylindrical point must be designed to enter the mating hole, groove or recess; do not substitute a flat, cone or cup point without engineering approval.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

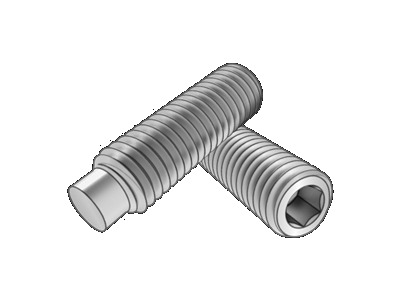

DIN 915 Hex Socket Set (Dog)

Product code

Product specification

M6x10

Product standard

DIN 915

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

9.71~10.29

3.7~4

3.44

3.02~3.06

3.5

3~3.25

max = maximum; min = minimum

Material

Material type

Steel

Grade

General technical requirements

DIN 267-1

Thread

Tolerance

45H:5g6g; other classes:6g

Standard

DIN 13-15 DIN 13-12

Mechanical properties

Property class

45H

Standard

DIN ISO 898-5

Tolerance

Product grade

Standard

ISO 4759-1

Surface Treatment

black (heat or chemical); electroplatingDIN 267-9

Surface roughness

DIN 267-2

Inspection & packaging

DIN 267-5

Surface defects

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	dp/max	dp/min	e/min	s/min	s/max	t/min	z/min	z/max
M1.4	0.3	0.7	0.45	0.803	0.711	0.724	0.6	0.4	0.65
M1.6	0.35	0.8	0.55	0.803	0.711	0.724	0.7	0.4	0.65
M1.8	0.35	0.9	0.65	0.803	0.711	0.724	0.8	0.5	0.65
M2	0.4	1	0.75	1.003	0.889	0.902	0.8	0.5	0.75
M2.5	0.45	1.5	1.25	1.427	1.27	1.295	1.2	0.63	0.88
M3	0.5	2	1.75	1.73	1.52	1.545	1.2	0.75	1
M4	0.7	2.5	2.25	2.3	2.02	2.045	1.5	1	1.25
M5	0.8	3.5	3.2	2.87	2.52	2.56	2	1.25	1.5
M6	1	4	3.7	3.44	3.02	3.06	2	1.5	1.75
M8	1.25	5.5	5.2	4.58	4.02	4.095	3	2	2.25
M10	1.5	7	6.64	5.72	5.02	5.095	4	2.5	2.75
M12	1.75	8.5	8.14	6.86	6.02	6.095	4.8	3	3.25
M14	2	10	9.64	6.86	6.02	6.095	5.6	3.5	3.8
M16	2	12	11.57	9.15	8.025	8.115	6.4	4	4.3
M18	2.5	13	12.57	11.43	10.025	10.115	7.2	4.5	4.8
M20	2.5	15	14.57	11.43	10.025	10.115	8	5	5.3
M22	2.5	17	16.57	13.72	12.032	12.142	9	5.5	5.8
M24	3	18	17.57	13.72	12.032	12.142	10	6	6.3

Product parameters

M6x10

Dimension	Parameter (mm)
d
P
L
L max
L min
dp max
dp min
e min
s max
s min
t1 min
z1 max
z1 min

Technical conditions

Material	Material type
Material	Grade
General technical requirements	DIN 267-1
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface Treatment	black (heat or chemical); electroplatingDIN 267-9
Surface roughness
Inspection & packaging
Surface defects
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
