Custom & Non-Standard DIN 916 / ISO 4029 Cup-Point Set Screws

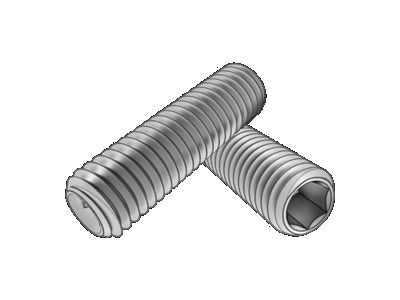

Hex Socket Set (Cup)

Looking for custom DIN 916 cup-point set screws? Use the DIN 916 / ISO 4029 cup-point geometry as a starting drawing, then define thread size and pitch, overall length, hex-socket width and depth, cup diameter, depth and rim form, mating-surface material, hardness, finish, tolerances and inspection. The approved drawing controls the finished non-standard part.

Standards
  • DIN 916
Back to Set screwsCompare DIN 916 equivalents and replacement →

Create Your DIN 916 Drawing Online

Use this DIN 916 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 916 or DIN916, this online drawing tool covers the same Hex Socket Set (Cup) standard reference.

Customize DIN 916 Cup-Point Set Screws

DIN 916 / ISO 4029 is the reference template, not a limit on the customer specification. Change the thread, length, socket, cup diameter, depth or rim form, material, hardness, coating and tolerances as required. The cup rim normally grips an unprepared mating surface and may mark it; do not substitute a flat, cone or dog point without engineering approval.

DIN 916

Hex Socket Set (Cup)

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 916
DIN 916 Hex Socket Set (Cup)
Product code
Product specification
M6x10
Product standard
DIN 916
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 916 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M6
P
1
L
9.71~10.29
dz
2.75~3
e
3.44
s
3.02~3.08
t1
3.5

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
General technical requirements
DIN 267-1
Thread
Tolerance
45H:5g6g; other classes:6g
Standard
DIN 13-15 DIN 13-12
Mechanical properties
Property class
45H
Standard
DIN ISO 898-5
Tolerance
Product grade
A
Standard
DIN ISO 4759-1
Surface Treatment
black (heat or chemical); electroplatingDIN 267-9
Surface roughness
DIN 267-2
Inspection & packaging
DIN 267-5
Surface defects
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-916Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPdz/maxdz/mine/mins/mins/maxt/min
M1.40.30.70.450.8030.7110.7240.6
M1.60.350.80.550.8030.7110.7240.7
M1.80.350.90.650.8030.7110.7240.8
M20.410.751.0030.8890.9020.8
M2.50.451.20.951.4271.271.2951.2
M30.51.41.151.731.521.5451.2
M40.721.752.32.022.0451.5
M50.82.52.252.872.522.562
M6132.753.443.023.082
M81.2554.74.584.024.0953
M101.565.75.725.025.0954
M121.7587.646.866.026.0954.8
M14298.646.866.026.0955.6
M162109.649.158.0258.1156.4
M182.51211.5711.4310.02510.1157.2
M202.51413.5711.4310.02510.1158
M222.51615.5713.7212.03212.1429
M2431615.5713.7212.03212.14210
Document No.: EF-DIN-916Revision: v1Issue date: 2026-09-24Page: 2 / 2
