ASME B18.31.2-1 Online Drawing Generator & Dimensions

Continuous thread studs, coarse pitch

Use this ASME B18.31.2-1 online drawing generator to review the Continuous thread studs, coarse pitch geometry and configure diameter, pitch, overall length and thread engagement. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for ASME B18.31.2-1, ASMEB18.31.2-1, ASME B18.31.2-1 drawing and ASME B18.31.2-1 dimensions refer to this page.

Standards
  • ASME B18.31.2-1
Back to Threaded rodsCompare ASME B18.31.2-1 equivalents and replacement →

Create Your ASME B18.31.2-1 Drawing Online

Use this ASME B18.31.2-1 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as ASME B18.31.2-1 or ASMEB18.31.2-1, this online drawing tool covers the same Continuous thread studs, coarse pitch standard reference.

Configure Your ASME B18.31.2-1 Continuous thread studs, coarse pitch Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

ASME B18.31.2-1

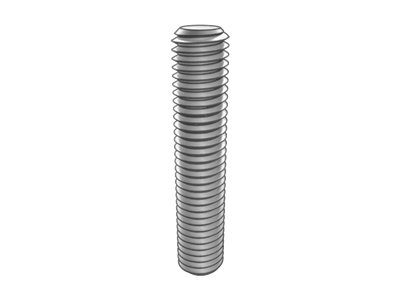

Continuous thread studs, coarse pitch

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
ASME B18.31.2-1
ASME B18.31.2-1 Continuous thread studs, coarse pitch
Product code
Product specification
1/2"-13X3"
Product standard
ASME B18.31.2-1
Material / grade
Steel 45
Unit
inch
Mechanical properties
45H
ASME B18.31.2-1 technical drawing
Dimension
Parameter (inch)
Dimension
Parameter (inch)
d
1/2
P
13
L
2.92~3.08
c
0.154

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-ASME-B18-31-2-1Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: inch

DimensionPc/max
180.25
1/4200.1
1/2130.154
1-1/870.286
1-1/470.286
1-3/860.333
1-1/260.333
1-3/450.4
24.50.444
2-1/44.50.444
2-1/240.5
2-3/440.5
340.5
3/8160.125
3/4100.2
3-1/440.5
3-1/240.5
3-3/440.5
440.5
5/16180.111
5/8110.182
7/16140.143
7/890.222
9/16120.167
Document No.: EF-ASME-B18-31-2-1Revision: v1Issue date: 2026-09-24Page: 2 / 2
