Fully Threaded Rods
| Standard | DIN 975 / 976 · ISO 898-1 |
|---|---|
| Material | Q235 / 35CrMo / SCM435 / 4140 |
| Strength Grade | 4.8 / 8.8 / 10.9 |
| Size Range | M4-M30 |
| Surface Treatment | Zinc Plated / HDG / Black Oxide |
01
Product Description
Product Description & Key Specifications
Fully threaded rods are continuous-thread bars used for construction support systems, pipe hangers, MEP installation, solar PV mounting, equipment fixing and general industrial assemblies. They are supplied to DIN 975 / DIN 976 and ISO 898-1 reference in Q235, 35CrMo, SCM435 or 4140, with grade 4.8, 8.8 or 10.9 options according to load requirement.
The correct threaded rod choice depends on strength grade, diameter, bar length, thread pitch, coating and matching nut or washer requirements. Low-carbon Q235 grade 4.8 rods are practical for light-duty support and general fastening, while 35CrMo, SCM435 and 4140 grade 8.8 / 10.9 rods are used where higher tensile performance is required.
Zinc plated rods are common for indoor construction and equipment assemblies, HDG threaded rods support outdoor or exposed steelwork, and black oxide is used for selected machinery or controlled environments. Common procurement models include M6, M8, M10, M12, M16 and M20 rods in 1 m, 2 m or 3 m lengths, or cut-to-length pieces by drawing.
| Product type | Fully threaded rods / metric all-thread bars |
|---|---|
| Standards | DIN 975 / DIN 976 / ISO 898-1 |
| Material | Q235 / 35CrMo / SCM435 / 4140 |
| Strength grade | 4.8 / 8.8 / 10.9 |
| Size range | M4-M30 |
| Common models | M6 x 1000, M8 x 1000, M10 x 1000, M12 x 1000, M16 x 1000, M20 x 1000 |
| Thread type | Metric coarse thread, full length thread |
| Surface finish | Zinc plated / Hot-dip galvanized / Black oxide |
| Matched hardware | Hex nuts, flat washers, spring washers or project-specific hardware |
| Documentation | CoC, MTC and dimensional report on request |
Dimensions & SpecificationsDIN 975

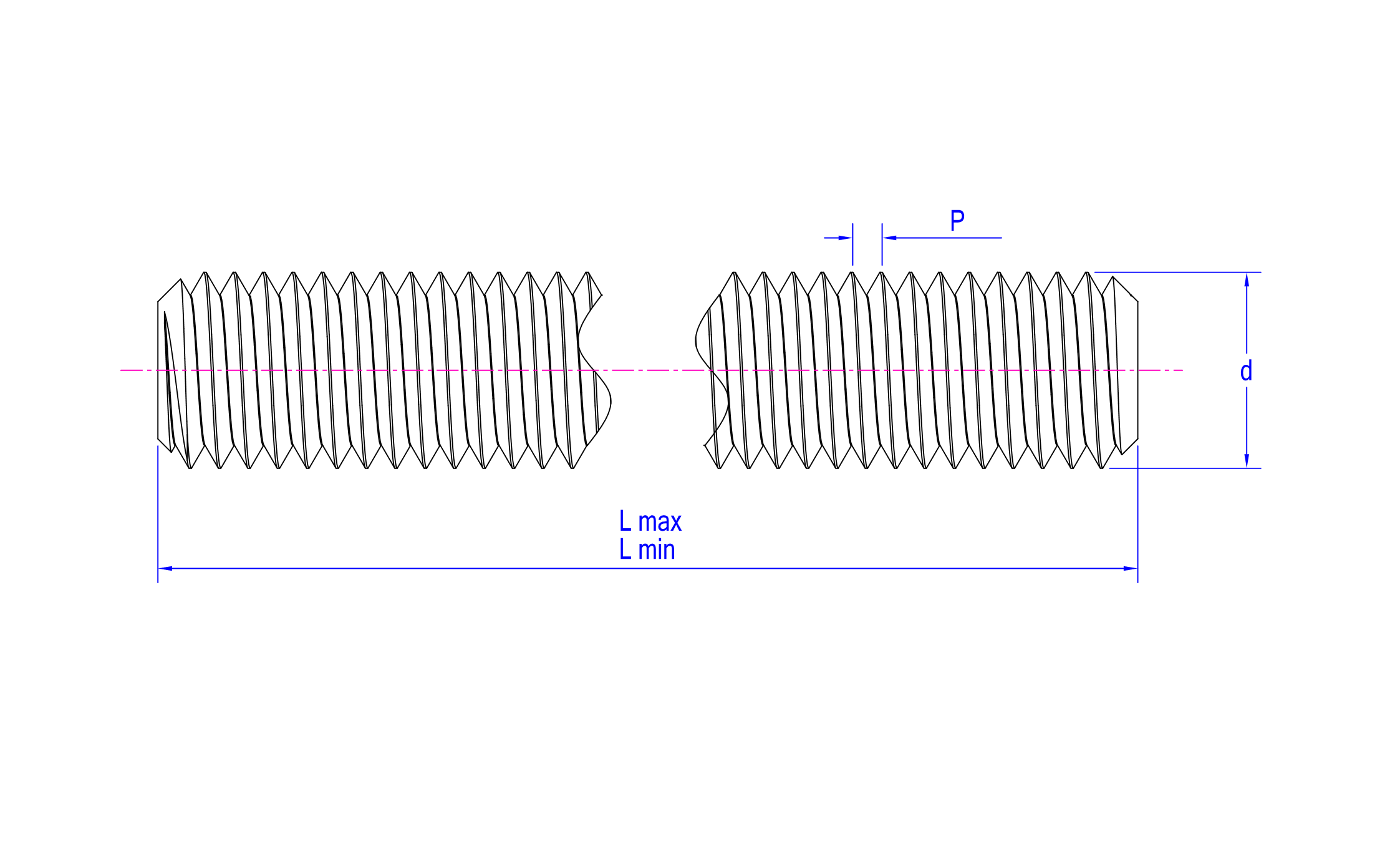

Technical Drawing
Dimensional Table
| Parameter | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1|1.25 | 1.25|1.5 | 1.25|1.5|1.75 | 1.5|2 | 1.5|2 | 1.5|2.5 | 1.5|2.5 | 1.5|2.5 | 2|3 | 2|3 | 2|3.5 | 2|3.5 | 3|4 | 3|4 | 3|4.5 | 3|4.5 | 3|5 | 3|5 |
Engineering references
Technical resources
Review the applicable dimensions, drawing and standard relationship before confirming the ordered specification.02
Selection
Selection Advantages by Application
Construction and MEP Support Systems
M8, M10, M12 and M16 threaded rods are common for pipe hangers, cable trays, HVAC supports and suspended construction systems. Zinc plated finish is often selected for indoor installation.
Construction fastenersSolar PV Mounting and Outdoor Steelwork
HDG fully threaded rods can be used in outdoor brackets, support frames and solar mounting accessories where corrosion protection is required. Confirm grade and coating thickness for exposed environments.
Renewable energy fastenersEquipment Fixing and Industrial Assemblies
Grade 8.8 / 10.9 all-thread rods in 35CrMo, SCM435 or 4140 are selected for machinery supports, adjustment rods and higher-strength industrial assemblies.
Industrial equipment fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Thread rolling or thread cutting for full-length metric rodsMaterial grade and diameter verification before production
Standard 1 m / 2 m / 3 m rods or cut-to-length piecesLength, straightness and thread gauge inspection
Zinc plated, HDG or black oxide surface treatmentCoating thickness, appearance and nut fit inspection after finish
Bundled, capped or carton-packed supply for project usePackage labeling by size, grade, finish and quantity
Matched nut and washer supply for construction kitsMTC, CoC and dimensional report prepared when requested
05
FAQ
Common Questions Before RFQ
What is the difference between DIN 975 and DIN 976 threaded rods?
Both are commonly referenced for metric threaded rods. The correct dimensional and delivery requirement should be confirmed against the buyer drawing or project standard.
Which grade should I choose for threaded rods?
Grade 4.8 is used for light-duty general support. Grades 8.8 and 10.9 are selected when higher tensile strength is required.
Can fully threaded rods be hot-dip galvanized?
Yes. HDG is available for outdoor applications, but nut fit and coating thickness should be checked because galvanizing adds coating build-up on the thread.
Can rods be supplied cut to length?
Yes. Threaded rods can be supplied as standard bars or cut-to-length pieces when diameter, length, grade, finish and tolerance are confirmed.
Can you supply matching nuts and washers?
Yes. Fully threaded rods can be supplied with compatible hex nuts, flat washers, spring washers or locking nuts according to the assembly requirement.
Need fully threaded rods for construction or equipment assemblies?
Send diameter, length, grade, material, finish, quantity and matching nut/washer needs. We can quote DIN 975 / DIN 976 threaded rods in standard lengths or cut-to-length project packages.
