Create Your DIN 928 Drawing Online

Use this DIN 928 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 928 or DIN928, this online drawing tool covers the same Square Welding Nuts standard reference.

Configure Custom DIN 928 Square Weld Nuts

Specify thread, weld feet or projections, underside and base dimensions, target sheet thickness, material, welding method, coating and tolerances. Manufacture follows the approved custom drawing.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

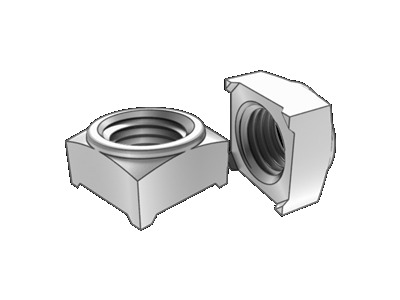

DIN 928 Square Welding Nuts

Product code

Product specification

Product standard

DIN 928

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

0.7

0.5~0.7

0.4~1.3

3.2~3.5

6.64~7

max = maximum; min = minimum

Material

Material type

Steel

Grade

Thread

Tolerance

Standard

Mechanical properties

Property class

45H

Standard

Tolerance

Product grade

Standard

Surface defects

Surface Treatment

Inspection & packaging

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	e/min	h/max	h/min	h1/min	h1/max	k/max	k/min	s/max	s/min
M4	0.7	9	0.7	0.5	0.4	1.3	3.5	3.2	7	6.64
M5	0.8	12	0.9	0.7	0.6	1.5	4.2	3.9	9	8.64
M6	1	13	0.9	0.7	0.7	1.8	5	4.7	10	9.64
M8	1\|1.25	18	1.1	0.9	1.1	2	6.5	6.14	14	13.57
M10	1\|1.25\|1.5	22	1.3	1.1	1.25	2.2	8	7.64	17	16.57
M12	1.25\|1.5\|1.75	25	1.5	1.3	1.75	3	9.5	9.14	19	18.48
M14	1.5\|2	28	1.5	1.3	1.75	3.2	11.4	10.97	22	21.48
M16	1.5\|2	32	1.7	1.5	2	4	13	12.57	24	23.48

Product parameters

Dimension	Parameter (mm)
d
P
e min
h max
h min
h1 max
h1 min
k max
k min
s max
s min

Technical conditions

Material	Material type
Material	Grade
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
