Square Weld Nuts
| Standard | DIN 928 |
|---|---|
| Material | Low Carbon Steel |
| Strength Grade | Grade 6 / 8 |
| Size Range | M4-M12 |
| Surface Treatment | Zinc Plated |
01
Product Description
Product Description & Key Specifications
Square weld nuts are projection welding nuts used to create strong internal threads on sheet metal panels, brackets and stamped components. DIN 928 square weld nuts are common in automotive, EV, machinery and appliance sheet metal assemblies where access for a loose nut is not practical.
This product is supplied in low carbon steel with Grade 6 / 8 options, M4-M12 thread range and zinc plated finish. The weld projections, thread position, nut height, square size and coating must support reliable projection welding and subsequent assembly with bolts or screws.
Weld nut RFQs should confirm thread size, grade, projection style, coating, panel material, welding process, torque/push-out requirement and whether cleanliness or oil condition is controlled for automated welding lines.
| Product type | Square weld nuts / projection weld nuts |
|---|---|
| Standards | DIN 928 |
| Material | Low carbon steel |
| Strength grade | Grade 6 / 8 |
| Size range | M4-M12 |
| Common models | M4, M5, M6, M8, M10, M12 |
| Nut form | Square nut with weld projections by DIN 928 |
| Surface finish | Zinc plated |
| Matched hardware | Hex bolts, flange bolts, pan head screws and sheet metal brackets |
| Documentation | CoC, material certificate, dimensional report and coating report on request |
Dimensions & SpecificationsDIN 928

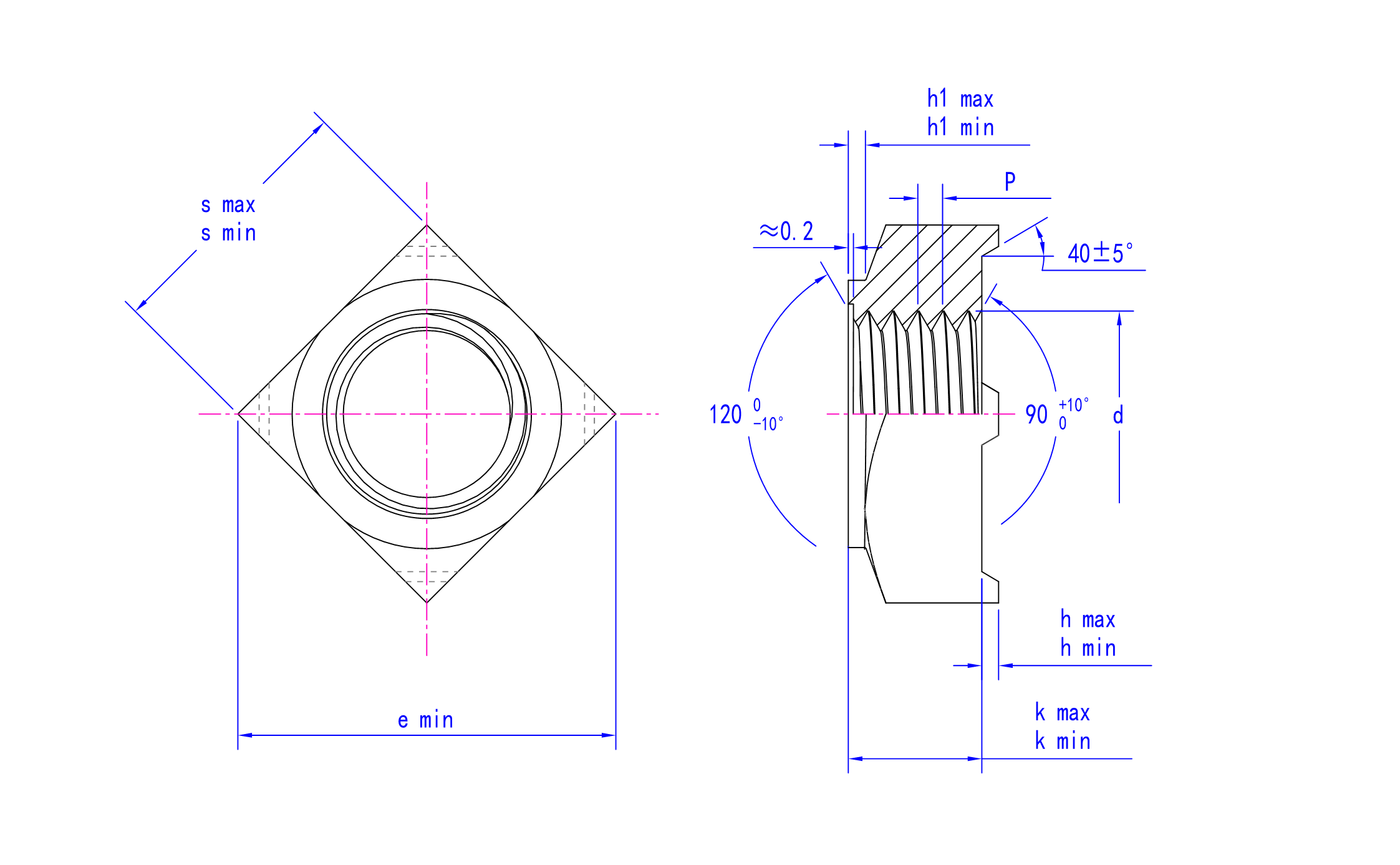

Technical Drawing
Dimensional Table
| Parameter | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 |
|---|---|---|---|---|---|---|---|---|
| P | 0.7 | 0.8 | 1 | 1|1.25 | 1|1.25|1.5 | 1.25|1.5|1.75 | 1.5|2 | 1.5|2 |
| e/min | 9 | 12 | 13 | 18 | 22 | 25 | 28 | 32 |
| h/max | 0.7 | 0.9 | 0.9 | 1.1 | 1.3 | 1.5 | 1.5 | 1.7 |
| h/min | 0.5 | 0.7 | 0.7 | 0.9 | 1.1 | 1.3 | 1.3 | 1.5 |
| h1/min | 0.4 | 0.6 | 0.7 | 1.1 | 1.25 | 1.75 | 1.75 | 2 |
| h1/max | 1.3 | 1.5 | 1.8 | 2 | 2.2 | 3 | 3.2 | 4 |
| k/max | 3.5 | 4.2 | 5 | 6.5 | 8 | 9.5 | 11.4 | 13 |
| k/min | 3.2 | 3.9 | 4.7 | 6.14 | 7.64 | 9.14 | 10.97 | 12.57 |
| s/max | 7 | 9 | 10 | 14 | 17 | 19 | 22 | 24 |
| s/min | 6.64 | 8.64 | 9.64 | 13.57 | 16.57 | 18.48 | 21.48 | 23.48 |
Engineering references
Technical resources
Review the applicable dimensions, drawing and standard relationship before confirming the ordered specification.02
Selection
Selection Advantages by Application
Automotive and EV Sheet Metal
DIN 928 square weld nuts are used on chassis panels, brackets, battery trays and stamped sheet parts where automated projection welding creates threaded attachment points.
Automotive and EV fastenersEquipment Panels and Brackets
M5-M10 weld nuts support equipment housings, covers and brackets where a permanent threaded boss is needed on thin sheet metal.
Industrial equipment fastenersAssembly Line Weld Nut Supply
Weld nuts can be supplied with controlled packaging, clean threads and coating requirements for automated welding and line-side feeding.
Automotive and EV fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Cold forming of square nut blanks with weld projectionsLow carbon steel material and wire/blank verification
Tapping and projection geometry control to DIN 928Thread gauge, square size, height and projection inspection
Zinc plating with thread fit controlCoating thickness and visual inspection after plating
Bulk or line-side packaging for weld nut feedingQuantity, orientation and label checks by lot
Project supply for automotive and EV sheet metal assembliesCoC, dimensional and coating reports prepared on request
05
FAQ
Common Questions Before RFQ
What are square weld nuts used for?
They are welded onto sheet metal to create internal threads for bolts or screws when backside nut access is not practical.
What is DIN 928?
DIN 928 is a common reference for square weld nuts with projection welding features.
Can weld nuts be zinc plated?
Yes. Zinc plated finish is available, but welding performance and coating requirements should be confirmed.
What tests are common for weld nuts?
Thread gauge, dimensional inspection, torque and push-out tests may be specified depending on the assembly.
What RFQ details are needed?
Send thread size, grade, standard, projection requirements, coating, quantity, panel application and test requirements.
Need DIN 928 square weld nuts for sheet metal assemblies?
Send thread size, grade, coating, projection requirements, quantity and welding/test requirements. We can quote M4-M12 square weld nuts for automotive, EV and equipment panel assemblies.
Request a Quote
Get engineering support and pricing for this product — our team responds within 24 hours.
