DIN 7964C Online Drawing Generator & Dimensions

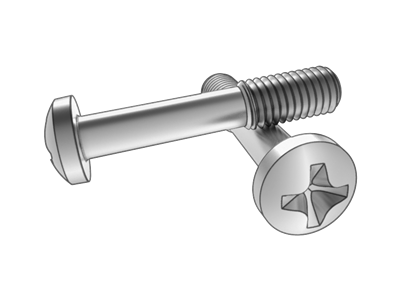

Type H cross recessed raised cheese head screws with waisted shank-K end

Use this DIN 7964C online drawing generator to review the Type H cross recessed raised cheese head screws with waisted shank-K end geometry and configure diameter, pitch, length, head and drive dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 7964C, DIN7964C, DIN 7964C drawing and DIN 7964C dimensions refer to this page.

Standards

DIN 7964C

Create Your DIN 7964C Drawing Online

Use this DIN 7964C drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 7964C or DIN7964C, this online drawing tool covers the same Type H cross recessed raised cheese head screws with waisted shank-K end standard reference.

Configure Your DIN 7964C Type H cross recessed raised cheese head screws with waisted shank-K end Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

DIN 7964C Type H cross recessed raised cheese head screws with waisted shank-K end

Product code

Product specification

M2.5x8

Product standard

DIN 7964C

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

M2.5

0.45

7.71~8.29

10~10.9

3.1

0.1

1.7~1.9

4.7~5

No.

2.7

1.3~1.6

1.88~2.12

1.3

max = maximum; min = minimum

Material

Material type

Steel

Grade

Thread

Tolerance

Standard

Mechanical properties

Property class

45H

Standard

Tolerance

Product grade

Standard

Surface defects

Surface Treatment

Inspection & packaging

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	b/max	b/min	da/max	r/min	ds/max	ds/min	dk/max	dk/min	No.	M	t/min	t/max	h/max	h/min	k
M2.5	0.45	10.9	10	3.1	0.1	1.9	1.7	5	4.7	1	2.7	1.3	1.6	2.12	1.88	1.3
M3	0.5	13	12	3.6	0.1	2.3	2.1	6	5.7	1	3.1	1.7	2	2.52	2.28	1.6
M4	0.7	15.4	14	4.7	0.2	3	2.8	8	7.64	2	4.6	2.04	2.54	3.25	2.95	2
M5	0.8	17.6	16	5.7	0.2	3.9	3.7	10	9.64	2	5.3	2.77	3.27	3.95	3.65	2.5
M6	1	20	18	6.8	0.25	4.6	4.4	12	11.57	3	6.8	3.03	3.53	4.75	4.45	3
M8	1.25	24.5	22	9.2	0.4	6.2	6	16	15.57	4	9	4.18	4.68	6.15	5.85	3.7
M10	1.5	29	26	11.2	0.4	7.7	7.5	20	19.48	4	10.2	5.38	5.88	7.68	7.32	4.8

Product parameters

M2.5x8

Dimension	Parameter (mm)
d
P
L
L max
L min
b max
b min
da max
r min
ds max
ds min
dk max
dk min
No.
M
t max
t min
h max
h min
k

Technical conditions

Material	Material type
Material	Grade
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
