Custom & Non-Standard DIN 966 / ISO 7047 Raised Countersunk Screws

Cross recessed raised countersunk head screws

Need custom DIN 966 raised countersunk screws? Use the DIN 966 / ISO 7047 oval-head, raised countersunk geometry as a starting drawing, then define thread size and pitch, total and threaded length, head diameter and raised profile, 90° seating, H or Z cross recess, material, strength class, finish, tolerances and inspection. The approved drawing controls the finished non-standard machine screw.

Standards
  • DIN 966
Back to Cross recessed screwsCompare DIN 966 equivalents and replacement →

Create Your DIN 966 Drawing Online

Use this DIN 966 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 966 or DIN966, this online drawing tool covers the same Cross recessed raised countersunk head screws standard reference.

Customize DIN 966 Raised Countersunk Screws

DIN 966 / ISO 7047 is a reference template for a metric cross-recessed raised countersunk machine screw, not a limit on the customer specification. Specify H or Z recess and 90° seating, then change thread, length, head diameter or raised profile, material, class, coating and tolerances as needed. Keep the raised profile distinct from the flush DIN 965 / ISO 7046 flat-head form.

DIN 966

Cross recessed raised countersunk head screws

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 966

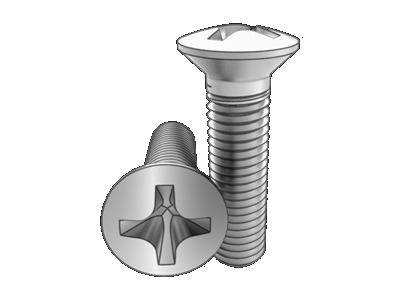

DIN 966 Cross recessed raised countersunk head screws
Product code
Product specification
M1.6x3
Product standard
DIN 966
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 966 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M1.6
P
0.35
L
2.8~3.2
dk
2.75~3
f
0.4
k
0.96
No.
0
M
1.9
t
0.74~1.1

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-966Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPdk/maxdk/minfk/maxNo.Mt/mint/max
M1.60.3532.750.40.9601.90.741.1
M20.43.83.50.51.212.51.11.4
M2.50.454.74.40.61.512.71.31.6
M30.55.65.30.751.6513.11.72
M3.50.66.56.140.91.9324.21.742.24
M40.77.57.1412.224.52.042.54
M50.89.28.841.252.525.32.773.27
M611110.571.5336.83.033.53
M81.2514.514.0724494.184.68
M101.51817.572.554105.385.88
Document No.: EF-DIN-966Revision: v1Issue date: 2026-09-24Page: 2 / 2

Related catalog products

Catalog fasteners commonly specified with this drawing family. Confirm size, material and property class against your project drawing.

Request a Quote for Custom DIN 966 Screws

Send the completed drawing with thread, raised countersunk head, cross recess, length, material or class, finish, quantity and inspection requirements for engineering review and quotation.
