Create Your ISO 7047 Drawing Online

Use this ISO 7047 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as ISO 7047 or ISO7047, this online drawing tool covers the same Cross recessed raised countersunk screws for precision standard reference.

Configure Custom ISO 7047 Screws

Set countersink angle, head diameter, recess, thread, length, material, finish and tolerances.

Technical Data Sheet

ETERNAL FASTENER

Wuxi, Jiangsu, China

Email: [email protected]

Web: www.fasteneref.com

WhatsApp: +8615951571207

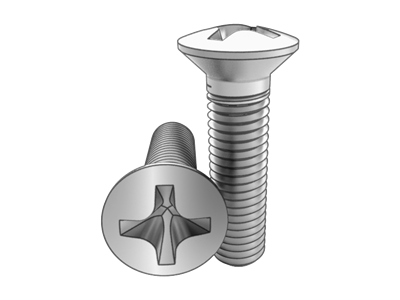

ISO 7047 Cross recessed raised countersunk screws for precision

Product code

Product specification

M1.6x1

Product standard

ISO 7047

Material / grade

Steel 45

Unit

Mechanical properties

45H

Dimension

Parameter (mm)

Dimension

Parameter (mm)

M1.6

0.35

0.8~1.2

2.7~3.0

0.4

No.

1.9

0.9~1.2

max = maximum; min = minimum

Material

Material type

Steel

Grade

Thread

Tolerance

Standard

Mechanical properties

Property class

45H

Standard

Tolerance

Product grade

Standard

Surface defects

Surface Treatment

Inspection & packaging

Ref. wt / 1000 pcs (kg)

Technical Data Sheet

Dimensions & size table

Unit: mm

Dimension	P	dk/max	dk/min	k/max	f	No.	M	t/max	t/min
M1.6	0.35	3.0	2.7	1	0.4	0	1.9	1.2	0.9
M2	0.4	3.8	3.5	1.2	0.5	0	2	1.5	1.2
M2.5	0.45	4.7	4.4	1.5	0.6	1	3	1.85	1.5
M3	0.5	5.5	5.2	1.65	0.7	1	3.4	2.2	1.8
M3.5	0.6	7.3	6.94	2.35	0.8	2	4.8	2.75	2.25
M4	0.7	8.4	8.04	2.7	1	2	5.2	3.2	2.7
M5	0.8	9.3	8.94	2.7	1.2	2	5.4	3.4	2.9
M6	1	11.3	10.87	3.3	1.4	3	7.3	4.0	3.5
M8	1.25	15.8	15.37	4.65	2	4	9.6	5.25	4.75
M10	1.5	18.3	17.78	5	2.3	4	10.4	6.0	5.5

Product parameters

M1.6x1

Dimension	Parameter (mm)
d
P
L
L max
L min
dk max
dk min
k max
f
No.
M
t max
t min

Technical conditions

Material	Material type
Material	Grade
Thread	Tolerance
Thread	Standard
Mechanical properties	Property class
Mechanical properties	Standard
Tolerance	Product grade
Tolerance	Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)

Notes / Remarks

Document No.

Document No.
Revision
Issue date
Page
Prepared by
Approved by
Product code
