DIN 601 Online Drawing Generator & Dimensions

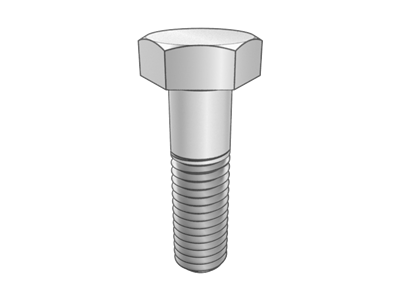

Hexagon head bolts, product grade C

Use this DIN 601 online drawing generator to review the Hexagon head bolts, product grade C geometry and configure diameter, pitch, length and head dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 601, DIN601, DIN 601 drawing and DIN 601 dimensions refer to this page.

Standards
  • DIN 601
Back to Hex head boltsCompare DIN 601 equivalents and replacement →

Create Your DIN 601 Drawing Online

Use this DIN 601 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 601 or DIN601, this online drawing tool covers the same Hexagon head bolts, product grade C standard reference.

Configure Your DIN 601 Hexagon head bolts, product grade C Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 601

Hexagon head bolts, product grade C

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 601
DIN 601 Hexagon head bolts, product grade C
Product code
Product specification
M5x25
Product standard
DIN 601
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 601 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M5
P
0.8
L
23.95~26.05
b
16
da
6
ds
4.52~5.48
e
8.63
k
3.12~3.88
r
0.2
s
7.64~8

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-601Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPda/maxds/minds/maxe/mink/mink/maxr/mins/maxs/min
M50.864.525.488.633.123.880.287.64
M617.25.526.4810.893.624.380.25109.64
M81.2510.27.428.5814.24.925.680.41312.57
M101.512.29.4210.5818.725.956.850.41716.57
M121.7514.711.312.720.887.057.950.61918.48
M16218.715.316.726.179.2510.750.62423.16
M202.524.419.1620.8432.9511.613.40.83029.16
M24328.423.1624.8439.5514.115.90.83635
M27332.426.1627.8445.216.117.914140
M303.535.429.1630.8450.8517.6519.7514645
M333.538.4323455.3719.9522.0515049
M36442.4353760.7921.4523.5515553.8
M39445.4384066.4423.9526.0516058.8
M424.548.6414371.324.9527.051.26563.1
M454.552.6444676.9526.9529.051.27068.1
M48556.6474982.628.9531.051.67573.1
M52562.6515388.2531.7534.251.68078.1
Document No.: EF-DIN-601Revision: v1Issue date: 2026-09-24Page: 2 / 2
