DIN 7984 Online Drawing Generator & Dimensions

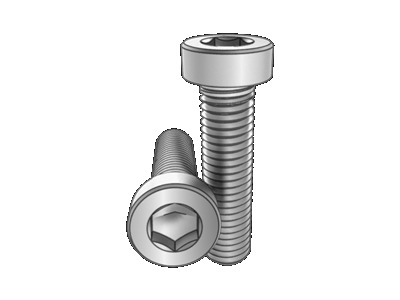

Hexagon socket head cap screws with low head

Use this DIN 7984 online drawing generator to review the Hexagon socket head cap screws with low head geometry and configure diameter, pitch, length, head and drive dimensions. Export a technical PDF drawing for sourcing, engineering review or custom manufacturing. Searches for DIN 7984, DIN7984, DIN 7984 drawing and DIN 7984 dimensions refer to this page.

Standards
  • DIN 7984
Back to Hex socket screwsCompare DIN 7984 equivalents and replacement →

Create Your DIN 7984 Drawing Online

Use this DIN 7984 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 7984 or DIN7984, this online drawing tool covers the same Hexagon socket head cap screws with low head standard reference.

Configure Your DIN 7984 Hexagon socket head cap screws with low head Drawing

Select the available size parameters, review the dimensional values and prepare a drawing-based specification. Material, grade, finish, tolerances, inspection and documentation requirements can be added to the manufacturing inquiry.

DIN 7984

Hexagon socket head cap screws with low head

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 7984
DIN 7984 Hexagon socket head cap screws with low head
Product code
Product specification
M3x5
Product standard
DIN 7984
Material / grade
Steel 45
Unit
mm
Mechanical properties
8.8
DIN 7984 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M3
P
0.5
L
4.76~5.24
da
3.6
dk
5.32~5.5
e
2.3
k
1.86~2
r
0.1
s
2.02~2.1
t
1.38~1.62

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
General technical requirements
DIN ISO 8992
Thread
Tolerance
6g
Standard
DIN ISO 261 DIN ISO 965-2
Mechanical properties
Property class
8.8
Standard
DIN EN ISO 898-1
Tolerance
Product grade
A
Standard
DIN EN ISO 4759-1
Surface Treatment
plain; electroplatingDIN EN ISO 4042; non-electrolytic zincDIN EN ISO 10683
Surface defects
DIN EN 26157-1
Inspection & packaging
DIN EN ISO 3269
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-7984Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPda/maxdk/maxdk/mine/mink/maxk/minr/mins/mins/maxt/maxt/min
M30.53.65.55.322.321.860.12.022.11.621.38
M40.74.776.782.872.82.660.22.522.62.422.18
M50.85.78.58.283.443.53.320.23.023.12.822.58
M616.8109.784.5843.820.254.024.123.122.88
M81.259.21312.735.7254.820.45.025.143.953.65
M101.511.21615.738.0165.820.47.0257.1754.654.35
M121.7513.71817.739.1576.780.68.0258.1755.154.85
M14215.72120.6711.4387.780.610.02510.1755.455.15
M16217.72423.6713.7298.780.612.03212.2125.655.35
M182.520.22726.6713.72109.780.612.03212.2126.686.32
M202.522.43029.67161110.730.814.03214.2127.687.32
M222.524.43332.61161211.730.814.03214.2128.187.82
M24326.43635.6119.441312.730.817.0517.238.187.82
Document No.: EF-DIN-7984Revision: v1Issue date: 2026-09-24Page: 2 / 2
