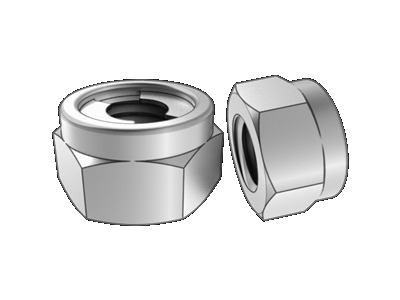

Custom & Non-Standard DIN 980 All-Metal Prevailing Torque Lock Nuts

All-metal Prevailing Nut

Need custom DIN 980 all-metal lock nuts? Use the DIN 980 drawing as a starting template, then identify the V or M form and define thread size and pitch, nut height, width across flats, bearing face, locking-zone deformation, material or property class, finish, lubrication, prevailing-torque targets and inspection. The approved drawing controls the finished non-standard nut.

Standards
  • DIN 980
Back to Lock nutsCompare DIN 980 equivalents and replacement →

Create Your DIN 980 Drawing Online

Use this DIN 980 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 980 or DIN980, this online drawing tool covers the same All-metal Prevailing Nut standard reference.

Customize DIN 980 All-Metal Lock Nuts

DIN 980 is a legacy all-metal prevailing-torque nut reference with V and M forms. Do not assume every DIN 980 drawing maps to ISO 7042: DIN 980-V is compared with ISO 7719, while DIN 980-M is compared with ISO 7042. Select the form, thread, height, locking-zone geometry, material, coating and torque criteria on the approved custom drawing.

DIN 980

All-metal Prevailing Nut

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 980
DIN 980 All-metal Prevailing Nut
Product code
Product specification
M3
Product standard
DIN 980
Material / grade
Steel 45
Unit
mm
Mechanical properties
45H
DIN 980 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M3
P
0.5
e
6.01
k
3.4~3.7
s
5.32~5.5

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
Thread
Tolerance
Standard
Mechanical properties
Property class
45H
Standard
Tolerance
Product grade
Standard
Surface defects
Surface Treatment
Inspection & packaging
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-980Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPe/mink/maxk/mins/maxs/min
M30.56.013.73.45.55.32
M40.77.664.23.976.78
M50.88.795.14.887.78
M6111.0565.7109.78
M7112.1276.51110.73
M81|1.2514.3887.51312.73
M101|1.25|1.518.91091716.73
M121.25|1.5|1.7521.112111918.67
M141.5|224.4914122221.67
M161.5|226.7516142423.67
Document No.: EF-DIN-980Revision: v1Issue date: 2026-09-24Page: 2 / 2

Related catalog products

Catalog fasteners commonly specified with this drawing family. Confirm size, material and property class against your project drawing.

Request a Quote for Custom DIN 980 Lock Nuts

Send the completed drawing with DIN 980 V/M form, thread and pitch, height, wrench size, locking-zone details, material, finish, torque target, quantity and inspection requirements for engineering review and quotation.
