Nylon Insert Lock Nuts
| Standard | DIN 985 / 982 |
|---|---|
| Material | 10B21 / 35K |
| Strength Grade | Grade 8 / 10 |
| Size Range | M4-M16 |
| Surface Treatment | Zinc Plated |
01
Product Description
Product Description & Key Specifications
Nylon insert lock nuts use a nylon ring to create prevailing torque on the mating bolt thread, helping resist loosening in vibration-prone general assemblies. This range is supplied in 10B21 / 35K with Grade 8 / 10 options to DIN 985 / DIN 982 in M4-M16 sizes.
DIN 985 low-type and DIN 982 high-type lock nuts are selected by available thread engagement, joint design and height requirement. Nylon insert nuts are useful for automotive accessories, EV brackets, railway panels, machinery guards and equipment covers, but they should not be used where operating temperature or chemicals can damage the nylon insert.
Zinc plated finish provides general corrosion protection. RFQs should confirm standard, size, grade, nut height type, coating, mating bolt grade, installation temperature, reuse policy and certificate requirements.
| Product type | Nylon insert lock nuts / nyloc nuts |
|---|---|
| Standards | DIN 985 / DIN 982 |
| Material | 10B21 / 35K steel body with nylon insert |
| Strength grade | Grade 8 / 10 |
| Size range | M4-M16 |
| Common models | M4, M5, M6, M8, M10, M12, M14, M16 |
| Thread type | Metric internal thread with nylon prevailing torque insert |
| Surface finish | Zinc plated |
| Matched hardware | Hex bolts, flange bolts, threaded rods and machinery screws |
| Documentation | CoC, MTC, prevailing torque, dimensional and coating report on request |
Dimensions & SpecificationsDIN 985 / ISO 10511

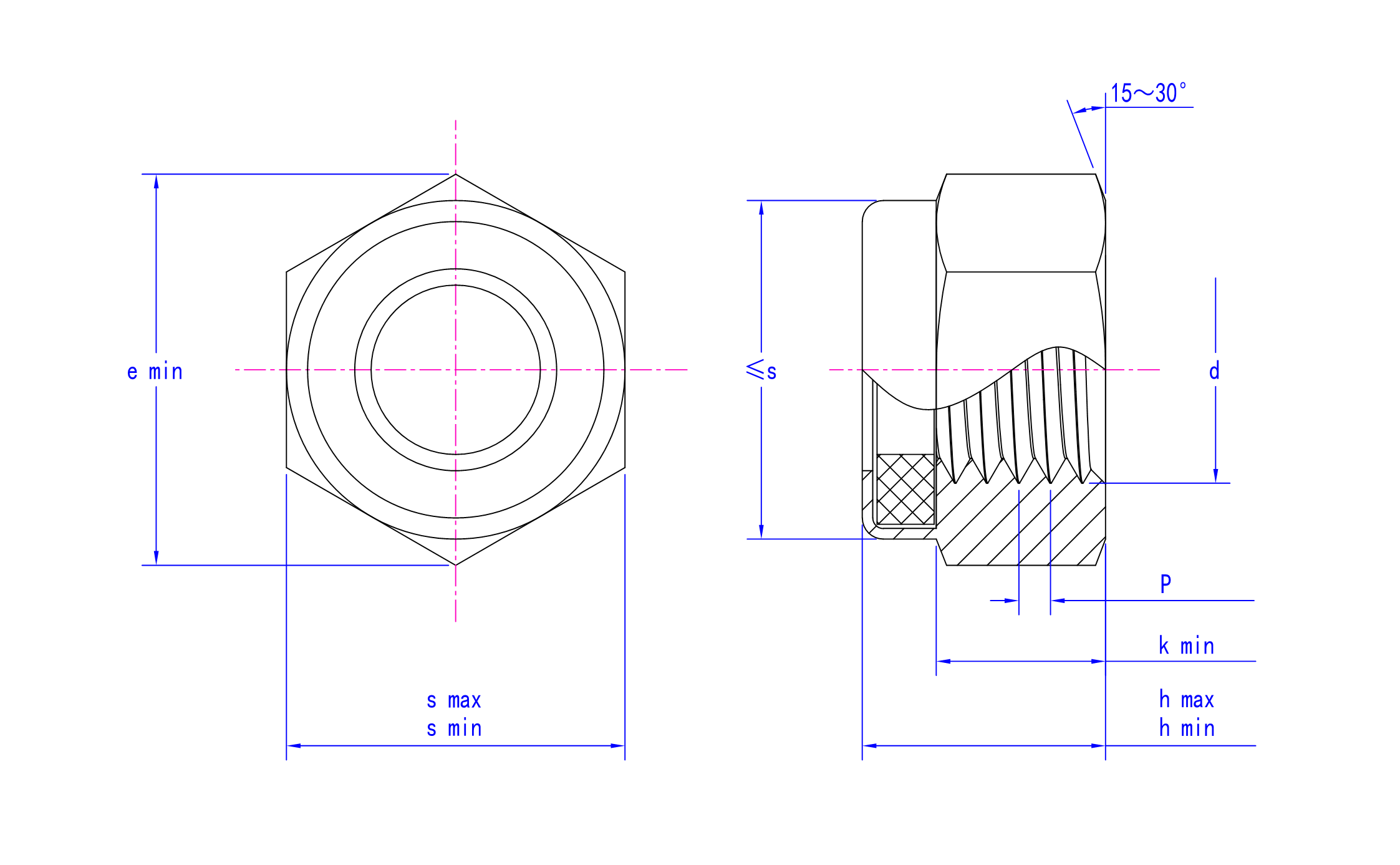

Technical Drawing
Dimensional Table
| Parameter | M3 | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M14 | M16 | M18 | M20 | M22 | 24 | M24 | 25 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | 174 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P | 0.5 | 0.7 | 0.8 | 1 | 1 | 1|1.25 | 1|1.25|1.5 | 1.25|1.5|1.75 | 1.5|2 | 1.5|2 | 1.5|2|2.5 | 1.5|2|2.5 | 1.5|2|2.5 | 0.4 | 2|3 | 0.45 | 2|3 | 2|3.5 | 2|3.5 | 3|4 | 3|4 | 3|4.5 | 3|4.5 | 3|5 | 0.6 |
| e/min | 6.01 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 | 18.9 | 21.1 | 24.49 | 26.75 | 29.56 | 32.95 | 35.03 | — | 39.55 | — | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 72.09 | 76.95 | 82.6 | — |
| h/max | 4 | 5 | 5 | 6 | 7.5 | 8 | 10 | 12 | 14 | 16 | 18.5 | 20 | 22 | — | 24 | — | 27 | 30 | 33 | 36 | 39 | 42 | 45 | 48 | — |
| h/min | 3.7 | 4.7 | 4.7 | 5.7 | 7.14 | 7.64 | 9.64 | 11.57 | 13.3 | 15.3 | 17.66 | 18.7 | 20.7 | — | 22.7 | — | 25.7 | 28.7 | 31.4 | 34.4 | 37.4 | 40.4 | 43.4 | 46.4 | — |
| k/min | 2.4 | 2.9 | 3.2 | 4 | 4.7 | 5.5 | 6.5 | 8 | 9.5 | 10.5 | 13 | 14 | 15 | — | 15 | — | 17 | 19 | 22 | 25 | 27 | 29 | 32 | 36 | — |
| s/max | 5.5 | 7 | 8 | 10 | 11 | 13 | 17 | 19 | 22 | 24 | 27 | 30 | 32 | — | 36 | — | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 | — |
| s/min | 5.32 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | 16.73 | 18.67 | 21.67 | 23.67 | 26.16 | 29.16 | 31 | — | 35 | — | 40 | 45 | 49 | 53.8 | 58.8 | 63.8 | 68.1 | 73.1 | — |
Engineering references
Technical resources
Review the applicable dimensions, drawing and standard relationship before confirming the ordered specification.02
Selection
Selection Advantages by Application
Automotive and EV Brackets
DIN 985 / DIN 982 nyloc nuts are used in brackets, covers, battery accessories and body hardware where vibration resistance and low-cost locking are required.
Automotive and EV fastenersRailway Interior and Equipment Panels
M6-M12 nylon lock nuts can be used in rail interior panels and equipment brackets when temperature and fire requirements permit nylon inserts.
Railway fastenersMachinery Guards and Covers
Grade 8 / 10 nylon insert lock nuts support machinery covers, guards and service panels where repeat vibration could loosen ordinary nuts.
Industrial equipment fasteners03
Assembly
Recommended Matching Products
04
Manufacturing
Manufacturing & Quality Control
Manufacturing CapabilityQuality Control
Cold forming and tapping of steel nut bodies10B21 / 35K material and grade verification
Nylon insert assembly for DIN 985 / DIN 982 formsInsert position, thread gauge and prevailing torque checks
Heat treatment for Grade 8 / 10 nut bodiesHardness and proof load inspection by lot
Zinc plating with thread and insert protection controlCoating thickness and visual inspection
Bulk, carton or assembly-kit packagingCoC, dimensional and torque reports prepared on request
05
FAQ
Common Questions Before RFQ
What is the difference between DIN 985 and DIN 982?
DIN 985 is a lower-profile nylon insert lock nut, while DIN 982 is a higher-type lock nut with more height.
Can nylon insert lock nuts be used at high temperature?
They are limited by the nylon insert. For high-temperature joints, consider all-metal prevailing torque nuts if approved.
Are nylon lock nuts reusable?
Reuse depends on remaining prevailing torque and project rules. Critical assemblies should define reuse policy.
What grades are available?
Grade 8 and Grade 10 options are available in this product range.
Can matching bolts be supplied?
Yes. Nylon insert lock nuts can be supplied with matching bolts and washers as kits.
Need DIN 985 / DIN 982 nylon insert lock nuts?
Send size, standard, grade, finish, mating bolt grade, temperature condition and quantity. We can quote M4-M16 zinc plated nyloc nuts for automotive, rail and machinery assemblies.
