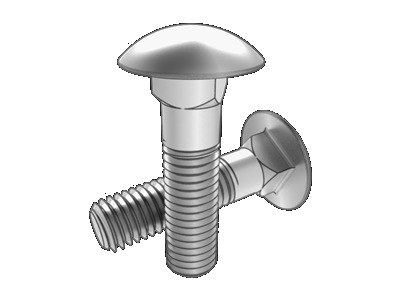

Custom DIN 603 Cup Head Square Neck Carriage Bolts

Cup Head Square Neck Bolts / Carriage Bolts

Use the current DIN 603 cup-head square-neck form, or withdrawn ISO 8677 legacy geometry where the old drawing requires it, as the starting point for a custom carriage bolt. Specify head profile and diameter, square-neck width and height, mating-hole engagement, thread and grip lengths, material, property class, coating, tolerances and inspection.

Standards
  • DIN 603
Back to Round head boltsCompare DIN 603 equivalents and replacement →

Create Your DIN 603 Drawing Online

Use this DIN 603 drawing generator to configure dimensions, review the technical drawing and export a custom drawing for manufacturing. Whether the specification is written as DIN 603 or DIN603, this online drawing tool covers the same Cup Head Square Neck Bolts / Carriage Bolts standard reference.

Configure Your Custom DIN 603 Carriage Bolt

DIN 603 remains an active standard family. ISO 8677 was withdrawn in 2019 but is still used on legacy drawings, stock descriptions and industry enquiries, so it remains a valid historical cross-reference rather than a current replacement. Do not substitute small-head ISO 8678 or inch-series ASME B18.5 geometry. The square neck and mating feature must be designed together to prevent rotation.

DIN 603

Cup Head Square Neck Bolts / Carriage Bolts

Technical Data Sheet

ETERNAL FASTENER
Wuxi, Jiangsu, China
Email: [email protected]
Web: www.fasteneref.com
WhatsApp: +8615951571207
DIN 603
DIN 603 Cup Head Square Neck Bolts / Carriage Bolts
Product code
Product specification
M5x16
Product standard
DIN 603
Material / grade
Steel 45
Unit
mm
Mechanical properties
4.6 3.6:; 8.8/otherSteel材组别/强度类别custom
DIN 603 technical drawing
Dimension
Parameter (mm)
Dimension
Parameter (mm)
d
M5
P
0.8
L
15.1~16.9
dk
12.45~13.55
k1
2.9~4.1
k
2.7~3.3
r
0.5
s
4.52~5.48

max = maximum; min = minimum

Material
Material type
Steel
Grade
45
General technical requirements
DIN 267-1
Thread
Tolerance
8g
Standard
DIN 13-13
Mechanical properties
Property class
4.6 3.6:; 8.8/otherSteel材组别/强度类别custom
Standard
DIN ISO 898-1
Tolerance
Product grade
C
Standard
DIN ISO 4759-1
Surface Treatment
electroplatingDIN 267-9; HDGDIN 267-10
Surface defects
DIN 267-19
Surface roughness
DIN 267-2
Inspection & packaging
DIN 267-5
Ref. wt / 1000 pcs (kg)
Document No.: EF-DIN-603Revision: v1Issue date: 2026-09-24Page: 1 / 2

Technical Data Sheet

Dimensions & size table

Unit: mm

DimensionPdk/maxdk/minds/maxds/mink1/maxk1/mink/maxk/minr/maxs/maxs/min
M50.813.5512.4554.524.12.93.32.70.55.484.52
M6116.5515.4565.524.63.43.883.120.56.485.52
M81.2520.6519.3587.425.64.44.884.120.58.587.42
M101.524.6523.35109.426.65.45.384.620.510.589.42
M121.7530.6529.351211.38.757.256.956.05112.711.3
M16238.837.21615.312.911.18.958.05116.715.3
M202.546.8 45.2 20 19.16 15.9 14.1 11.05 9.95 1 20.84 19.16
Document No.: EF-DIN-603Revision: v1Issue date: 2026-09-24Page: 2 / 2

Related catalog products

Catalog fasteners commonly specified with this drawing family. Confirm size, material and property class against your project drawing.

Request Custom DIN 603 Carriage Bolt Manufacturing

Send the completed drawing with the required DIN 603 or legacy ISO 8677 geometry, head and square-neck details, mating-hole condition, thread, grip, material, property class, coating, quantity and inspection documents.
